What’s the deal with sender authentication? Part 6

In the last article in this series (see VB, December 2010, p.12), we looked at how digital signatures in email are accomplished through the use of DomainKeys Identified Mail, or DKIM. While DKIM does have its niche applications, and is useful for whitelisting and identification in the positive case, one of the barriers to mass implementation is that it is less useful for detecting spoofing. This is because the protocol states that the failure of a DKIM validation should be treated as if there were no DKIM signature at all in the message. Since the receiver of a message doesn’t know whether or not a domain should even have a DKIM signature, the lack of one doesn’t indicate that a message is spoofed. There are any number of legitimate reasons why it might not have one. If a broken signature is just as ‘valid’ as the lack of a signature, then for most receivers who are primarily concerned about filtering spam, the usefulness of DKIM is minimal.

Author Domain Signing Policies, or ADSP [1], is an optional extension to DKIM that allows senders and receivers to specify whether a domain signs all of its mail or only some of its mail with a DKIM signature.

The protocol is simple. Any domain that signs with DKIM can publish one of three values in the dkim= field of its DNS txt record at _adsp._domainkey.<domain>.com:

The use of ADSP nets some advantages but also imposes some constraints on the sender. One of the flexibilities of DKIM is that it allows a sender to send on behalf of someone else. The signing domain is specified in the d= field in the DKIM signature header. Thus, the From: field can specify the domain that the sender wants the recipient to see in their inbox, while reputation checks can be performed on the signing domain. For example, if travel company Oceanic contracts out the sending of its marketing messages to Big Communications, Inc., Big Communications will sign the message and put ‘bigcommunications.com’ in the d= field, but ‘[email protected]’ in the From: field. The receiver performs the reputation check not on oceanic.com but on bigcommunications.com. Big Communications is taking responsibility for the quality of the message.

However, in order to use ADSP, the sender’s From: field must be the same as the domain in the d= field. The reason is that the signing policy must first be looked up before checking to see if the DKIM-Signature field exists. The mail receiver first performs the lookup for the domain in the From: field to see whether or not it has a signing policy, and if it does, the receiver extracts data from the DKIM-Signature field (if it exists). If it does not exist, then the action specified by the ADSP is applied.

If the From: field is different, then this defeats the entire point of ADSP. If the domain is different, then a spammer could spoof the From: address and then sign the message with a different signing domain. For example, suppose the From: field is [email protected], but the signing domain is d= spammer.com. If PayPal says that it signs every message, then to a mail receiver the signature in the DKIM-Signature field will check out because a spammer could easily set up his own public/private key pair.

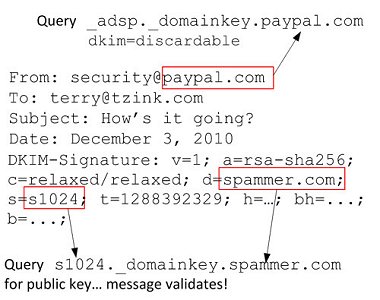

Figure 1. What can happen if From: does not have to match the d= field.

Thus, if a domain wishes to use ADSP, then it cannot have mail sent by others on its behalf. (This is required by the protocol in RFC 5617 section 2.7; the domain in the d= field must match the domain in the From: field.)

This leads to some interesting nuances. Consider the following sequence of events:

What about the first time a sender transmits mail to a receiver and doesn’t have a DKIM-Signature, but does have an ADSP record? In this case, the receiver would extract the domain in the From: field but would be unable to extract the domain from the d= field since the d= field doesn’t exist. If this sender has an ADSP record that says ‘discardable’, the receiver would be unable to discard the message because it can’t check the ADSP record as it has only one of the two required variables. This is important for the case of spoofing and phishing. If a phisher spoofs the From: address but does not include the DKIM-Signature, even if the spoofee has an ADSP record saying that unsigned mail should be discarded, this will not help the receiver. They don’t know what action to take because an unsigned message is just that – an unsigned message. The receiver must rely on traditional spam filtering techniques.

Thus, from a logistical point of view, in order to make use of ADSP a receiver needs the following:

From that point forward, all incoming messages for this particular sender are checked against this local copy and the ADSP policy enforced against it (DNS cache is one mechanism for achieving this, although it isn’t the only one).

As we have seen, the requirement for the d= field to match the From: field adds a serious constraint to DKIM. What sorts of senders benefit from using ADSP?

The most useful ADSP record is the ‘discardable’ record because it is the only one that allows a receiver to combat the problem of spoofing. But in order to use ADSP with this record, only the domain itself can send out mail for its brand – the organization cannot outsource any of its mail to marketers (or rather, if it does, it adds a lot of risk by lending its reputation to a third party).

Furthermore, the organization must control all of its outbound servers and have a strong sense of ownership. For a small organization located in one city or state, this isn’t difficult as uniform IT policies can be enforced across the organization. For global organizations with IT departments in multiple countries in multiple time zones, perhaps spread across multiple continents, this imposes logistical difficulties. It is non-trivial for an IT department to control and maintain physical resources spread across different locales. Servers get upgraded, personnel come and go, and software changes. People go on vacation and sometimes software upgrades are missed; if this happens and servers are misconfigured, then it means that legitimate mail coming from a single locale that is out of spec compared to the rest of the organization can end up being discarded. Global synchronization can be accomplished, but it takes a lot of time and effort. The larger an organization becomes, the tighter its security policies must be if it wants to use ADSP.

Financial institutions benefit directly from tight control over their brand identity and suffer greatly when it is abused. If a phisher spoofs a financial organization and succeeds in tricking the recipient into giving up their credentials, then that customer can lose funds. More and more these days, banks are starting to protect their users from phishing losses but this means that the bank (in many cases) absorbs the loss. However, it is not just banks that benefit from anti-spoofing; credit card companies also benefit. Credit card companies frequently advertise anti-fraud protection after the first $50 or so. Typically, they will fight with the vendors to get merchandise charges revoked, or they absorb the loss (or use insurance to offset the damages). But by ensuring that their identity is protected such that spam filters discard spoofed mail, they are reducing their vulnerability. No technology can wipe out the threat of spoofing, but organizations should be using whatever means they can to make it more difficult for phishers to trick their users.

Some of the most phished brands worldwide are PayPal, HSBC, Bank of America, and eBay [2]. These are all organizations that are strongly associated with money. They also send email communication to their user base directly instead of outsourcing it to a third party, and therefore, these organizations are excellent candidates for the implementation of DKIM and ADSP.

However, it’s not just money that attracts phishers and spoofers. Any organization that protects identity or is very popular and has a massive user base is a beneficiary of ADSP. For example, Facebook is one of the top 10 most phished brands. It has a user base of 500 million users. Malware authors target Facebook all the time and they do this because Facebook is so popular. The odds of being able to successfully trick at least one Facebook user with a spoofed email are fairly high. The odds shrink when ADSP is used because receivers can look up and see that Facebook signs (or could sign) all of its mail, and that mail that isn’t signed should be marked as spam.

In addition, organizations that have shared outbound IP space benefit from the use of ADSP. If one organization using the shared IP becomes infected with malware and starts to spoof another organization, then a recipient that only performs SPF checks cannot detect this as spoofing. The reason is that both organizations put the shared IP space into their SPF records, but a recipient cannot walk back through the Received headers to see which was the originating organization. Since both organizations use the same outbound IP space, the message will pass an SPF check even though it was spoofed. However, using ADSP, a receiver would be able to determine that the source of the message was not the organization it claimed to be.

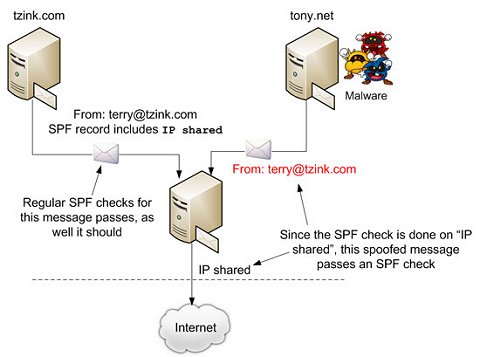

Figure 2. Shared IP space and SPF weakness.

Organizations that need to outsource their mail campaigns don’t benefit as much from ADSP. Without being able to assert ‘all’ or ‘discardable’, this forces organizations into the less useful ‘unknown’ option. (When I say ‘less useful’ I mean from an anti-spoofing viewpoint, not an authentication viewpoint.) An airline, a small, independent bookstore, a dance studio, or a flower shop each might decide to use an email service provider to carry out their marketing campaigns. This drives down the costs for the organization in question, but it prevents it from using a strong assertion about whether or not it signs mail for its domain. However, in these cases, it is not as important as it is for some other types of organization – an independent bookstore does not protect its users’ financial assets, nor does a flower shop know its customers’ social security numbers. While they all might have credit numbers or similar, they do not have the footprint of a large financial institution or a social networking site.

It ultimately comes down to a cost/benefit ratio. When an organization becomes large enough to attract the attention of spammers and phishers, the chances of its customers being phished, and how much that will cost the organization, needs to be weighed against bringing its email campaigns in house.

ADSP and SPF hard and soft fails accomplish similar things. How can they be used in conjunction with one another? What happens when we toss SenderID in there?

On the sending side, if an organization wants to use ADSP with ‘all’ or ‘discardable’, then it makes sense to complement it with SPF hard fails. The reason is that a hard fail implicitly states that you know all the IPs that you will ever send from. Ergo, this means that you have tight control over the mail that originates from your organization.

Since you know where your mail originates and want receivers to discard any mail from you that isn’t signed, there is a very good chance that you also know where all of your outbound IP addresses are that relay mail to the Internet. By using ‘discardable’, you cannot have anyone send mail on your behalf. This means that no one can ever send mail as you from anything other than your own email servers, and therefore you should use SPF hard fails in your SPF record.

On the flip side, if you use SPF hard fails, should you also use ‘all’ or ‘discard’? It’s actually fairly complicated, so let’s look at some possible combinations.

In this series on authentication, I have described the two major authentication technologies as well as the pros and cons of each. Ultimately, authentication is all about establishing identity and it is by no means limited to email; DNSSEC is another technology that is used to authenticate identity. One of the reasons why there is so much abuse on the Internet is because of the Internet’s inherent anonymity. When it was originally designed, its creators did not foresee that it would become as popular as it did. Thus, when they built it, they simply wanted to get it up and running as soon as possible and this meant people could send mail as anyone. However, because the ability to actually transmit mail (or perform any Internet transaction) was limited to a small set of people, abuse was relatively rare. To put it one way, geeks all trust each other to act ethically.

As the Internet grew, its vulnerability increased because malicious players also started to use it. They account for a small proportion of Internet users but they are able to do a lot of damage because of the inherent insecurity of the underlying protocols of the Internet. If the creators had to do it all over again, it is unlikely that they would allow the anonymity that is permitted today and they would likely implement some mechanism of identity.

However, the Internet is not only a technological phenomenon, it is also a cultural one; in particular it reflects western values (this next part represents my personal views). In the west, freedom of speech is one the most treasured values, and the Internet is viewed as a mode of communication. Thus, to the west, the Internet is seen as a mechanism of transmitting one’s points of view, be it for entertainment, economic or political purposes.

That last one is important because one of the United States’ values is the minimization of government lest it become too large. To US citizens (and, to a lesser extent, those of other western nations), the ability to speak out against repressive governments requires anonymity. The Internet is the perfect tool to communicate on a massive scale while still preserving that anonymity. Thus, if the technology sector ever wanted to end the anonymity of the Internet in order to end the scale of widespread abuse, they would encounter significant pushback from the political sector – both grassroots and organized movements. How are dissidents supposed to speak out against their governments without the safety of their anonymity?

The technology sector would claim that anonymity was not the original intent of the Internet. But regardless of whether it was intended, a lot of infrastructure and dependencies have been built up on top of anonymity such that its removal is virtually impossible. That is the current reality.

Will we ever see a cultural shift that allows us to value identity over anonymity? It’s difficult to say. It’s likely that with the deployment of IPv6, identity will be required by receivers in order to filter mail as IP blacklists will lose their effectiveness – the theoretical hiding spots for spamming IPs will become nearly infinite. Mail receivers will start pushing for everyone on IPv6 to start authenticating their mail so they can implement technical shortcuts for reputation filtering (perhaps allow instead of reject).

If email stays on IPv4 for many more years, and organizations send mail out of a common set of shared IPs, then identity will become even more valuable as receivers will insist that senders start signing their mail in order to avoid the collateral damage of blocking good senders who are forced to share an IP with bad senders. If that occurs, then technical requirements could force a shift in values.

In any case, the value of using SPF and DKIM, at this point, should be clear. On the sending side, by establishing your identity, you enable receivers to trust you and better facilitate communication between you and your recipients. On the receiving side, it allows you to differentiate organizations and apply different policies, and it can even help you detect spoofing. The time and effort spent implementing sender authentication can certainly outweigh its costs.
