VBSpam email security comparative review - September 2024

Ionuţ Răileanu & Adrian Luca

Virus Bulletin

Copyright © 2024 Virus Bulletin

Introduction

In the Q3 2024 VBSpam test – which forms part of Virus Bulletin's continuously running security product test suite – we measured the performance of a number of email security solutions against various streams of wanted, unwanted and malicious emails. One third of the solutions we tested opted to be included in the public test, the rest opting for private testing (all details and results remaining unpublished). The solutions tested publicly were ten full email security solutions and one open-source solution.

Starting with this test, the public quarterly VBSpam tests will operate under the umbrella of the AMTSO protocol. The supervision provided by AMTSO¹ enhances the transparency of VBSpam reports, as well as introducing more formal guarantees of fair and objective testing.

As we have iterated on previous occasions, email continues to be one of the main vectors for spreading malware and phishing attacks. As such, a dedicated email security solution is a good investment. Our tests show that such solutions can protect against the majority of existing threats – but also that there is still some work to be done.

For some additional background to this report, the table and map below show the geographical distribution (based on sender IP address) of the spam emails seen in the test². (Note: these statistics are relevant only to the spam samples we received during the test period.)

 Top 10 countries from which spam was sent.

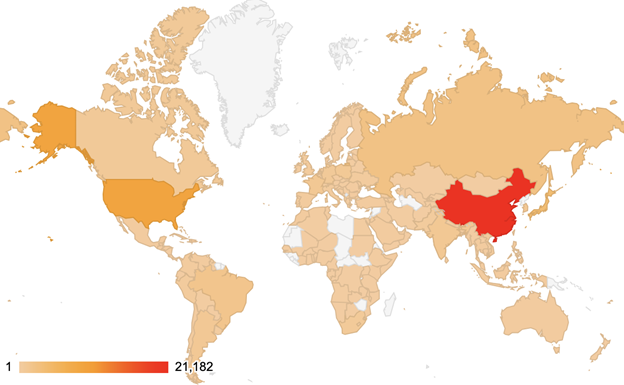

Geographical distribution of spam based on sender IP address.

AMTSO Standard compliance

Virus Bulletin executed this test in accordance with the AMTSO Standard of the Anti-Malware Testing Standards Organization. The compliance status can be verified on the AMTSO website³.

Highlights

Remcos malware

This was one of the malware samples that evaded detection of most of the tested solutions. It wasn't sent in bulk, and we detected it only once, on 5 August.

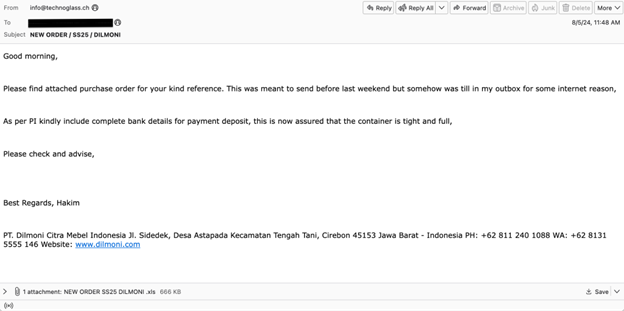

Email containing a malicious attachment that leads to Remcos malware.
The malicious attachment had the following details:

Name: "NEW ORDER SS25 DILMONI .xls"

SHA256: "696c5db492298e45c79d37eab78645ad3a59c855d140434d7719a60bd643b0f8"

At the time of our analysis, through a number of redirects, opening the attachment would lead to the installation of Remcos malware:

xls downloader ->
hxxp[:]//tgt[.]ng/uAIHxP -> hxxp[:]//107[.]175[.]113[.]209/21/gbv/yesheisgreatthingstobeokmybabayiskinggretbaktotheentirethingstogetbackthisheisgreatthising____________sheisbeautygogirlbaby[.]doc rtf downloader 3aa674f28721c0eacaec64067ea370ad718f559e0fafae39898c7fabc6988fd4 ->
vbs downloader ->
hxxp[:]//servidorwindows[.]ddns[.]com.br/Files/ ->
Remcos

Non-English phishing

In recent reports we have continued to observe that many phishing threats are successfully blocked by the tested security solutions. However, there are still some that slip through the net, and those that most often evade detection are phishing attempts in non-English languages.

Here we highlight two examples: one in Danish and one in German. At the time of our analysis, only the URL from the Danish phishing email was active. When users access this URL, they are redirected to the autopay[.]io website, while in the background a portable execution injection runs with the intent of stealing user credentials.

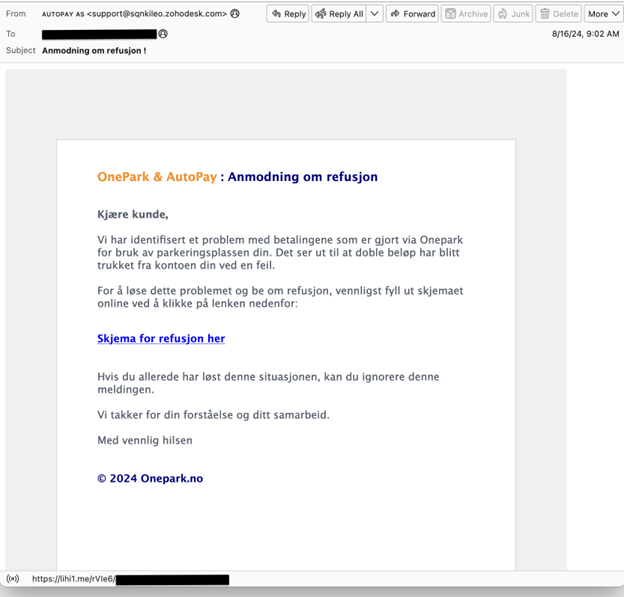

Danish phishing sample.

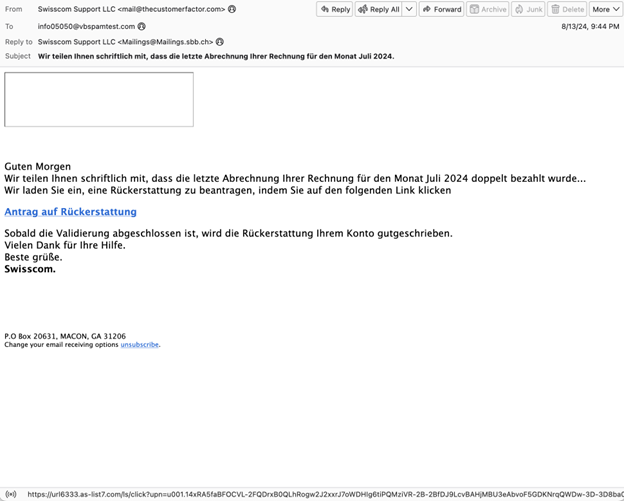

German phishing sample.

Results

Of the participating full solutions, two achieved a VBSpam award: SEPPmail.cloud Filter and Zoho Mail, while eight – Bitdefender GravityZone Premium, FortiMail, Mimecast, N-able Mail Assure, N-able SpamExperts, Net At Work NoSpamProxy, Sophos Email and SpamTitan – were awarded a VBSpam+ certification.

(Note: since, for a number of products, catch rates and/or final scores were very close to, whilst remaining a fraction below, 100%, we quote all the spam-related scores with three decimal places.)

Bitdefender GravityZone Premium

SC rate: 99.985% FP rate: 0.00% Final score: 99.985 Malware catch rate: 99.920% Phishing catch rate: 99.980% Project Honey Pot SC rate: 99.991% Abusix SC rate: 99.973% MXMailData SC rate: 100.000% Newsletters FP rate: 0.0% Speed:   10% 50% 95% 98%

Bitdefender GravityZone Premium delivered an outstanding performance in the test, with a spam catch rate of 99.985% and no false positives. It demonstrated strong protection across all categories, achieving a 99.920% malware catch rate and a 99.980% phishing catch rate. Additionally, Bitdefender excelled in blocking all spam from the Project Honey Pot and MXMailData sources. With its reliable speed and zero false positives, the solution is awarded a well‑deserved VBSpam+ certification.

Fortinet FortiMail

SC rate: 99.774% FP rate: 0.00% Final score: 99.774 Malware catch rate: 99.880% Phishing catch rate: 99.760% Project Honey Pot SC rate: 99.745% Abusix SC rate: 99.837% MXMailData SC rate: 99.650% Newsletters FP rate: 0.0% Speed:   10% 50% 95% 98%

FortiMail's robust performance in blocking threats without misclassifying any legitimate content earned it a VBSpam+ certification with a final score of 99.774, demonstrating its all-round effectiveness as an email security solution.

Mimecast

SC rate: 99.514% FP rate: 0.00% Final score: 99.514 Malware catch rate: 100.000% Phishing catch rate: 99.670% Project Honey Pot SC rate: 99.196% Abusix SC rate: 99.913% MXMailData SC rate: 100.000% Newsletters FP rate: 0.0% Speed:   10% 50% 95% 98%

Mimecast achieved a perfect 100% malware catch rate and an impressive phishing catch rate of 99.670%. With its reliable speed and zero false positives, the product earns VBSpam+ certification, continuing to demonstrate its effectiveness as a robust email security solution.

N-able Mail Assure

SC rate: 99.664% FP rate: 0.00% Final score: 99.664 Malware catch rate: 99.960% Phishing catch rate: 99.910% Project Honey Pot SC rate: 99.928% Abusix SC rate: 99.212% MXMailData SC rate: 99.970% Newsletters FP rate: 0.0% Speed:   10% 50% 95% 98%

With malware and phishing catch rates higher than 99.90% and no false positives of any kind, N-Able Mail Assure continues to show a strong performance. A well deserved VBSpam+ certification is awarded to the product in this test.

N-able SpamExperts

SC rate: 99.664% FP rate: 0.00% Final score: 99.664 Malware catch rate: 99.960% Phishing catch rate: 99.910% Project Honey Pot SC rate: 99.928% Abusix SC rate: 99.212% MXMailData SC rate: 99.970% Newsletters FP rate: 0.0% Speed:   10% 50% 95% 98%

With identical scores to its sister product, N-Able Spam Experts also continues to show a strong performance and also earns a well deserved VBSpam+ award.

Net At Work NoSpamProxy

SC rate: 99.963% FP rate: 0.00% Final score: 99.963 Malware catch rate: 99.960% Phishing catch rate: 99.970% Project Honey Pot SC rate: 99.960% Abusix SC rate: 99.959% MXMailData SC rate: 100.000% Newsletters FP rate: 0.0% Speed:   10% 50% 95% 98%

With a 100% catch rate on the MXMailData corpus and only one missed malware sample, Net At Work's email security solution earns VBSpam+ certification with an impressive final score of 99.963.

Rspamd

SC rate: 90.390% FP rate: 0.77% Final score: 86.480 Malware catch rate: 89.230% Phishing catch rate: 93.230% Project Honey Pot SC rate: 88.054% Abusix SC rate: 96.404% MXMailData SC rate: 75.770% Newsletters FP rate: 2.8% Speed:   10% 50% 95% 98%

The open-source Rspamd found dealing with the malware samples a challenge. However, we continue to see good performances from the solution on the overall spam corpus, in this case blocking more than 90% of the samples.

SEPPmail.cloud Filter

SC rate: 99.969% FP rate: 0.00% Final score: 99.899 Malware catch rate: 100.000% Phishing catch rate: 99.960% Project Honey Pot SC rate: 99.945% Abusix SC rate: 100.000% MXMailData SC rate: 100.000% Newsletters FP rate: 2.8% Speed:   10% 50% 95% 98%

SEPPmail.cloud Filter is one of only three solutions in the test that managed to successfully block all the malware samples. Despite narrowly missing out on VBSpam+ certification, a VBSpam award is well earned, with a final score placing it in the top half of the rankings.

Sophos Email

SC rate: 99.868% FP rate: 0.00% Final score: 99.868 Malware catch rate: 99.920% Phishing catch rate: 100.000% Project Honey Pot SC rate: 99.970% Abusix SC rate: 99.791% MXMailData SC rate: 99.410% Newsletters FP rate: 0.0% Speed:   10% 50% 95% 98%

Sophos Email is the only solution in this test that successfully blocked all the phishing emails. Adding to this a lack of false positives of any kind, the product earns a well deserved VBSpam+ certification.

SpamTitan

SC rate: 99.984% FP rate: 0.00% Final score: 99.984 Malware catch rate: 100.000% Phishing catch rate: 99.980% Project Honey Pot SC rate: 99.975% Abusix SC rate: 99.995% MXMailData SC rate: 100.000% Newsletters FP rate: 0.0% Speed:   10% 50% 95% 98%

No malware passed the filters of SpamTitan in this test. While scoring green in all the speed measurements and correctly classifying all the legitimate samples, the product is awarded VBSpam+ certification.

Zoho Mail

SC rate: 98.278% FP rate: 0.00% Final score: 98.278 Malware catch rate: 99.670% Phishing catch rate: 99.460% Project Honey Pot SC rate: 97.704% Abusix SC rate: 98.918% MXMailData SC rate: 99.630% Newsletters FP rate: 0.0% Speed:   10% 50% 95% 98%

In this test Zoho Mail managed to correctly classify all the legitimate samples and blocked more than 99% of the malware and phishing emails. With a final score of 98.278 the product is awarded VBSpam certification.

Results tables

	True negatives	False positives	FP rate	False negatives	True positives	SC rate	Final score	VBspam
Bitdefender GravityZone Premium	1425	0	0.00%	9	59198.4	99.985%	99.985
Fortinet FortiMail	1425	0	0.00%	134	59073.4	99.774%	99.774
Mimecast	1425	0	0.00%	287.6	58919.8	99.514%	99.514
N-able Mail Assure	1425	0	0.00%	199	59008.4	99.664%	99.664
N-able SpamExperts	1425	0	0.00%	199	59008.4	99.664%	99.664
Net At Work NoSpamProxy	1425	0	0.00%	22.2	59185.2	99.963%	99.963
Rspamd	1414	11	0.77%	5690	53517.4	90.390%	86.480
SEPPmail.cloud Filter	1425	0	0.00%	18.4	59189	99.969%	99.899
Sophos Email	1425	0	0.00%	78.2	59129.2	99.868%	99.868
SpamTitan	1425	0	0.00%	9.2	59198.2	99.984%	99.984
Zoho Mail	1425	0	0.00%	1019.4	58188	98.278%	98.278

^† The standard deviation of a product is calculated using the set of its hourly spam catch rates.

	Speed
	10%	50%	95%	98%
Bitdefender GravityZone Premium
Fortinet FortiMail
Mimecast
N-able Mail Assure
N-able SpamExperts
Net At Work NoSpamProxy
Rspamd
SEPPmail.cloud Filter
Sophos Email
SpamTitan
Zoho Mail

0-30 seconds

30 seconds to two minutes

two minutes to 10 minutes

more than 10 minutes

Appendix: set-up, methodology and email corpora

The full VBSpam test methodology can be found at https://www.virusbulletin.com/testing/vbspam/vbspam-methodology/vbspam-methodology-ver30/.

The test ran for 16 days, from 12am on 3 August to 12am on 19 August 2024 (GMT).

The test corpus consisted of 60,690 emails. 59,229 of these were spam, 33,388 of which were provided by Project Honey Pot, 22,090 were provided by Abusix with the remaining 3,751 spam emails provided by MXMailData. There were 1,425 legitimate emails ('ham') and 36 newsletters, a category that includes various kinds of commercial and non-commercial opt-in mailings.

27 emails in the spam corpus were considered 'unwanted' (see the June 2018 report) and were included with a weight of 0.2; this explains the non-integer numbers in some of the tables.

Moreover, 2,441 emails from the spam corpus were found to contain a malicious attachment while 13,068 contained a link to a phishing or malware site; though we report separate performance metrics on these corpora, it should be noted that these emails were also counted as part of the spam corpus.

Emails were sent to the products in real time and in parallel. Though products received the email from a fixed IP address, all products had been set up to read the original sender’s IP address as well as the EHLO/HELO domain sent during the SMTP transaction, either from the email headers or through an optional XCLIENT SMTP command⁴.

For those products running in our lab, we all ran them as virtual machines on a VMware ESXi cluster. As different products have different hardware requirements – not to mention those running on their own hardware, or those running in the cloud – there is little point comparing the memory, processing power or hardware the products were provided with; we followed the developers’ requirements and note that the amount of email we receive is representative of that received by a small organization.

Although we stress that different customers have different needs and priorities, and thus different preferences when it comes to the ideal ratio of false positive to false negatives, we created a one-dimensional ‘final score’ to compare products. This is defined as the spam catch (SC) rate minus five times the weighted false positive (WFP) rate. The WFP rate is defined as the false positive rate of the ham and newsletter corpora taken together, with emails from the latter corpus having a weight of 0.2:

WFP rate = (#false positives + 0.2 * min(#newsletter false positives , 0.2 * #newsletters)) / (#ham + 0.2 * #newsletters)

while in the spam catch rate (SC), emails considered ‘unwanted’ (see above) are included with a weight of 0.2.

The final score is then defined as:

Final score = SC - (5 x WFP)

In addition, for each product, we measure how long it takes to deliver emails from the ham corpus (excluding false positives) and, after ordering these emails by this time, we colour-code the emails at the 10th, 50th, 95th and 98th percentiles:

	(green) = up to 30 seconds
	(yellow) = 30 seconds to two minutes
	(orange) = two to ten minutes
	(red) = more than ten minutes

Products earn VBSpam certification if the value of the final score is at least 98 and the ‘delivery speed colours’ at 10 and 50 per cent are green or yellow and that at 95 per cent is green, yellow or orange.

Meanwhile, products that combine a spam catch rate of 99.5% or higher with a lack of false positives, no more than 2.5% false positives among the newsletters and ‘delivery speed colours’ of green at 10 and 50 per cent and green or yellow at 95 and 98 per cent earn a VBSpam+ award.

Meanwhile, products that combine a spam catch rate of 99.5% or higher with a lack of false positives, no more than 2.5% false positives among the newsletters and ‘delivery speed colours’ of green at 10 and 50 per cent and green or yellow at 95 and 98 per cent earn a VBSpam+ award.

Footnotes

¹ https://www.amtso.org/.

² For 3,721 spam samples (6.28%) we couldn’t find the data about geographical location based on IP address.

³ https://www.amtso.org/tests/virus-bulletin-vbspam-q3-2024/.

⁴ http://www.postfix.org/XCLIENT_README.html.
