This paper evaluates the threats diabetic patients face when they use smart glucose monitoring devices. We study those threats from three different angles:
The medical sector is certainly one of those domains which particularly deserves our attention. Numerous hospitals have been targeted by ransomware [1–4] and the trend has only been increasing with attacks on IoT devices [5]. For example, [6] relates the case of an infected spectrometer which was sending outband spam email and mining cryptocurrencies. These attacks are not as sensational as the assassination of the Vice President of the USA in the TV series Homeland, but they are real, and so is their impact (financial loss, privacy leaks, etc.).
We decided to study a practical case: what threats do diabetic patients using a smart device face? Diabetes, more precisely diabetes mellitus, is a ‘chronic disease caused by inherited and/or acquired deficiency in production of insulin by the pancreas, or by the ineffectiveness of the insulin produced. Such a deficiency results in increased concentrations of glucose in the blood, which in turn damage many of the body’s systems, in particular the blood vessels and nerves.’ [7]. Diabetes is an interesting research topic for several reasons: (1) it is a life-threatening condition, (2) it requires daily attention, and (3) it affects up to 9% of adults worldwide.
The first part of our study concerns the security and privacy of an IoT device, a glucose sensor, which is popular among diabetic patients and commercialized around the world. Then we discuss diabetic‑related malware and cybercrime.
Diabetic patients have to measure their blood glucose levels regularly (e.g. four to six times per day) and decide whether to inject insulin or not, depending on the level. Typically, they prick their fingertip and measure blood glucose using a blood glucose meter. This repeated routine is tedious, and as a consequence, systems that automatically measure blood glucose levels are seen by many patients as a great relief. In such automated systems, a sensor is applied to the patient’s skin, which measures the amount of glucose in interstitial tissue and transmits the data to a blood glucose reader. Note that testing glucose in interstitial tissue is not quite the same as testing directly in blood but it usually gives acceptable results [8]. These automated systems fall into two categories: Continuous Glucose Monitoring (CGM) systems and Flash Glucose Monitoring (FGM) systems. The main difference is that CGMs measure the glucose level continuously and require calibration, while FGMs only measure a few times per hour.
The FGM system we have investigated consists of two parts:
The glucose sensor is assembled then applied to the patient’s skin. It must then be activated to become operational. This can be done via an NFC scan of the sensor with the official app or the Glimp S app. The sensor enters a warm-up period (one hour in Europe) before finally being ready to use. Note that the warm-up period exists for medical reasons, because when you apply the sensor the soft needle causes some (usually minor) local tissue disruption that the body heals with an inflammatory reaction that consumes glucose and hence alters the glucose readings [8]. The warm-up period allows time for the glucose signal to stabilize. The length of the warm-up period varies between countries depending on how strict the regulations are in the different countries [9].
The sensor expires after 14 days and must be replaced by a new one. This point will be detailed later. The glucose sensor is sold for approximately 60 euros.
As summarized in Figure 1, from a security and privacy angle, threats to this system are located:
While hardware attacks are theoretically possible (e.g. tampering with the sensor to produce different glucose readings), they seem both difficult to conduct and of limited interest in practice. Therefore, we will quickly run through this part, mainly because it helps understand the sensor’s architecture.
The sensor casing is difficult to open without damage [10]. We developed our own method by unclipping the enzyme sensor and then introducing a thin blade between the upper and lower parts of the casing. Once opened, we identified an RF430 chip, an NFC antenna, a temperature sensor and JTAG test points.
The temperature sensor ensures the sensor is being operated in correct temperature conditions. It probably also serves as a basic hack detection system, detecting whether or not the sensor is being worn on a human body.

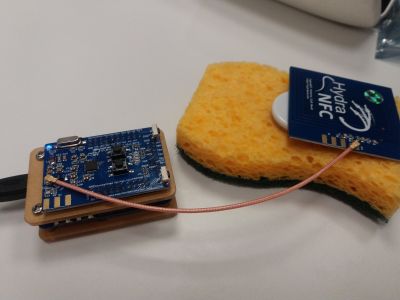

There are several NFC flavours. The best known is probably ISO 14443, for instance Mifare cards. Our glucose sensor uses a lesser known model, known as vicinity cards or ISO 15693. A vicinity card can be read at a longer distance than a proximity card, and still does not need to be powered. The reading distance remains short, and while the standard claims up to one metre, diabetic users report that the glucose sensor won’t transmit over more than 4cm. Note that this may be due to the NFC reader (or the smartphone acting as an NFC reader). A reader with a larger antenna loop should theoretically be able to read at a longer distance.
This leads us to the first vulnerability: the sensor can be read by anyone. There is no authentication mechanism, no pairing, no device lock. In some cases, this is a useful ‘feature’: a doctor can scan the glucose sensor of his patient. The downside is that the sensor is open to anyone. In a packed bus, an attacker could scan and read the glucose level of a diabetic person without being noticed. A prying employer or an insurance company would instantly know their employee or client had diabetes, etc. We confirmed the issue by reading the glucose sensor without any problem with HydraBus NFC [11] and Proxmark 3 [12] using, respectively, the commands scan continuous and hf search.
Reading a glucose measure is more complicated because you need to understand where the measures are located and their format. We reversed the memory map of the sensor with help from the code of open-source mobile applications [13, 14].
A glucose measure consists of a six-byte record. There is one new glucose measure per minute. The 16 most recent records are known as trend records. Then, a historic record is created. The sensor memorizes 32 historic records. At all times, the sensor keeps track of the index of the current trend record, the index of the current historic record, and the number of minutes since the sensor was activated. The sensor’s memory map is detailed below:
Byte number | Description |
26 | Current trend index |
27 | Current history index |
28 - 123 | Trend records. Six-byte records. 16 records. |
124 - 315 | History records. Six-byte records. 32 records. |
316 | Low nibble for sensor time |
317 | High nibble for sensor time |
The format of a glucose record is heavily obfuscated in the official application, so open-source applications interpret them with slight differences, using only the first two bytes. Knowing this, we can read a glucose measure by sending an NFC Read Single Block (0x20) or Read Multiple Blocks (0x23) command.
For example, the command below issues a Read Single Block command to read block number 4. The content of this block is 00 31 82 0F 00 C0 C6 31 82 (the last two bytes, 05 BE, are a CRC). In this case, the glucose record consists of the six bytes, 0F 00 C0 C6 31 82. They indicate a glucose measure of 1.5 mg/dL. This is extremely low because in this case the sensor had been removed from the human body and was no longer measuring glucose.
proxmark3> hf 15 cmd raw -c 02 20 04
received 11 octets
00 31 82 0F 00 C0 C6 31 82 05 BE
The next attack scenario to test is the modification of glucose measures. Fortunately, this does not work on the sensor because NFC blocks are locked. In the command below, we tried to overwrite block 27. The answer is explicit: this is impossible, the block is locked.
proxmark3> hf 15 cmd write u 27 00 00 00 00 78 00 00 00
Tag returned Error 18: The specified block is locked and its content cannot be changed.
Note that we tried several methods to overwrite blocks: unaddressed/addressed mode, different block numbers (all were locked) and raw write command. We got the ‘block locked’ error in all cases, so the sensor is not vulnerable to glucose records modification attacks.
Finally, as mentioned before, there is no authentication or pairing method between the sensor and the mobile application, and consequently the sensor can be read by anybody. The opposite is true as well: the mobile application cannot check that it is talking to the appropriate sensor. This means that an attacker can create a fake sensor using a Magic ISO 15693 card [15] and write fake glucose entries to the card. The mobile application does not have any way to detect that the sensor is fake. In fact, the official application won’t talk to a sensor it hasn’t activated, so the attack will only work on a fake sensor with the same UID as the current real sensor. Non-official applications don’t have this restriction though. However, if the attack scenario is to have the victim read incorrect glucose values, it is far simpler to implement a fake mobile application, as we will discuss in the malware section.
For mobile applications that communicate with the glucose sensor, we are particularly concerned by privacy leaks. The threats are easy to assess on open-source apps, but more difficult on closed-source ones. We investigated the official app, which fortunately has been implemented with care. We have not witnessed any medical data leak.

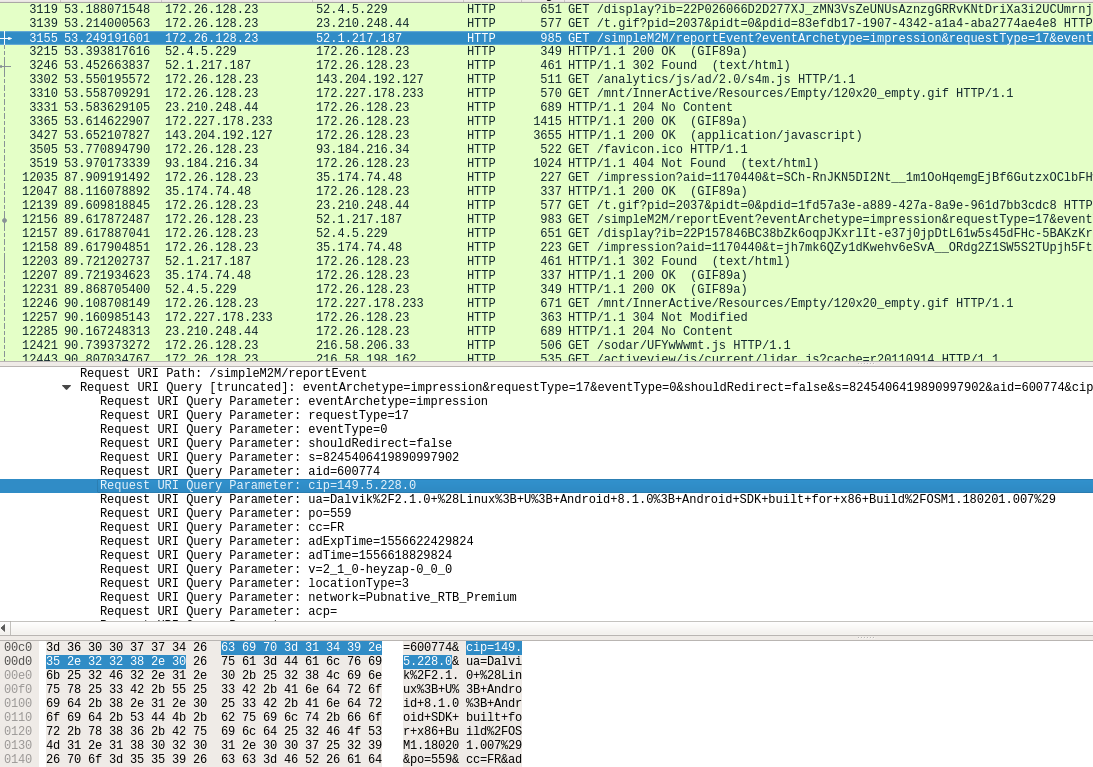

The application accesses the Internet in the following circumstances:
05-24 08:20:11.384 V/FA (13108): Event recorded: Event{appId=’com.XXXXXXXXXXXX’, name=’screen_view(_vs)’,
params=Bundle[{firebase_event_origin(_o)=auto, firebase_previous_class(_pc)=SplashActivity, firebase_previous_id(_pi)
=-3985357911052850480, firebase_screen_class(_sc)=HomeActivity, firebase_screen_id(_si)=-3985357911052850479}]}
05-24 08:20:11.436 D/FA (17498): Logging event (FE): SYS_UNEXPECTED, Bundle[{firebase_event_origin(_o)=app,
firebase_screen_class(_sc)=HomeActivity, firebase_screen_id(_si)=-3985357911052850479}]
05-24 08:20:11.526 D/FA (17498): Logging event (FE): user_engagement(_e), Bundle[{firebase_event_origin(_o)=auto,
engagement_time_msec(_et)=290, firebase_screen_class(_sc)=HomeActivity, firebase_screen_id(_si)=-3985357911052850479}]
The sensor expires after exactly 14 days (before 2018, the limit was 10 days in the US [9]).
We have been able to show that the sensor continues to work after that period. For example, in the following, a sensor aged 14 days 5 hours and 16 minutes is still measuring glucose every minute (the sensor has been removed from the human body, which explains the low glucose values).
Trend index: 11
Historic index: 20
Sensor bytes: high=0x4f low=0xfc
Sensor running since 20476 minutes (14 days, 5:16:00)
----
...
Trend record no.11: 2700c0e6ef80 = 3.9 mg/dL
Trend record no.12: 2800c0f2af80 = 4.0 mg/dL
...
As an experiment, we dissolved sugar in hot water, poured the solution over a sponge, and pinned the sensor to the sponge. The sensor (now aged 14 days, 5 hours and 23 minutes) clearly works. Initially, the record index was 8: the glucose level goes up to 35.5 mg/dL (record index 10 to 15) and then back down to the original 3.9 mg/dL (after index 15, read index 0 - 2).
Trend index: 2
Historic index: 21
Sensor bytes: high=0x50 low=0x3
Sensor running since 20483 minutes (14 days, 5:23:00)
----
Trend record no. 0: 6f00c0f2d900 = 11.1 mg/dL
Trend record no. 1: 4880c0369c00 = 7.2 mg/dL
Trend record no. 2: 2700c0deaf80 = 3.9 mg/dL
Trend record no. 3: 2700c0eaaf80 = 3.9 mg/dL
Trend record no. 4: 2600c0f6af80 = 3.8 mg/dL
Trend record no. 5: 2600c0f6af80 = 3.8 mg/dL
Trend record no. 6: 2700c0faaf80 = 3.9 mg/dL
Trend record no. 7: 2600c0eaaf80 = 3.8 mg/dL
Trend record no. 8: 2600c0f2af80 = 3.8 mg/dL
Trend record no. 9: 2600c002f080 = 3.8 mg/dL
Trend record no.10: 6381802a1580 = 35.5 mg/dL
Trend record no.11: fb8088d29300 = 25.1 mg/dL
Trend record no.12: 9500c07ed400 = 14.9 mg/dL
Trend record no.13: c100c87c1501 = 19.3 mg/dL
Trend record no.14: a000c8b81601 = 16.0 mg/dL
Trend record no.15: 8700c04ed800 = 13.5 mg/dL
Sensor expiration is implemented in the mobile application. The code below shows that the application checks that the difference between the current time and the activation date is not greater than the maximum wear time (14 days). This wear time, along with the warm-up time after activation, is not found in the Dalvik executable but read from a native library, libDataProcessing.so. This makes it more difficult to hack the values.
private SensorEntity addSensorToDatabase(User arg25, String arg26, Object activationtime, Object arg28, TimeZone arg29, Object current_time_obj,
Object arg31, Object arg32, int arg33, int warmupperiodinminutes, int weardurationinminutes) throws SensorExpiredException {
DefaultSensorAbstractionService v1 = this;
Object activation_time_obj = activationtime;
int max = weardurationinminutes;
if(v1.timeOfDayAdapter.toMilliseconds(current_time_obj) - v1.timeOfDayAdapter.toMilliseconds(activation_time_obj) >
TimeUnit.MINUTES.toMillis(((long)max))) {
throw new SensorExpiredException();
}
...
Why 14 days? Why not 15? Why can’t patients choose to have some extra time with their sensor if they really need it? The reason is not technical. The sensor could remain operational much longer and the restriction is enforced in software. The real reason is medical... or business-related. From a medical perspective, the device has been certified for 14 days [16], and it is obviously a good idea to remove the sensor after a while and let the skin heal. We leave the business reasons to the reader’s imagination.
Another type of attack scenario relies on smartphone compromise.
For example, if an attacker installs malware on a smartphone, s/he will be able to exfiltrate medical data. The malware will need to gain access to the mobile application’s private storage (in particular apollo.db and sas.db), but this is immediate on rooted devices, for instance.
An attacker can also implement a fake mobile glucose application that gives incorrect glucose readings. There is no way to prevent this. The official application does try to ensure that the application is installed from Google Play via Google’s License Verification Library. This will somewhat limit trojanized versions, but not entirely, and malware can be installed from other marketplaces.
An optimist would argue that, besides movie scenarios, there is no motivation for a cybercriminal to create a fake glucose application. We refute this argument, having found several malicious applications concerning diabetes management. Their motivation is not really to kill or harm a patient’s health, but yet again to make money.

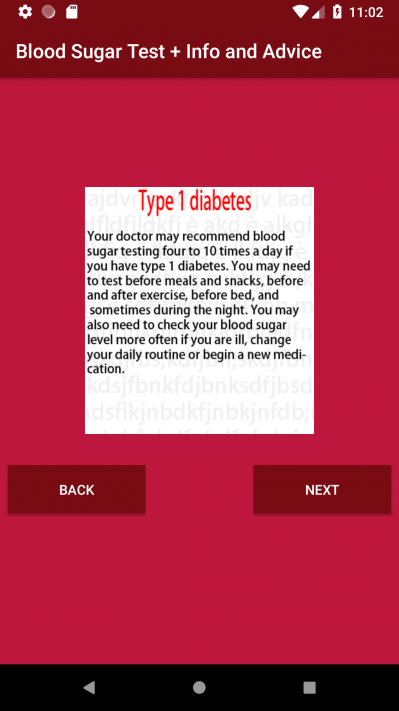

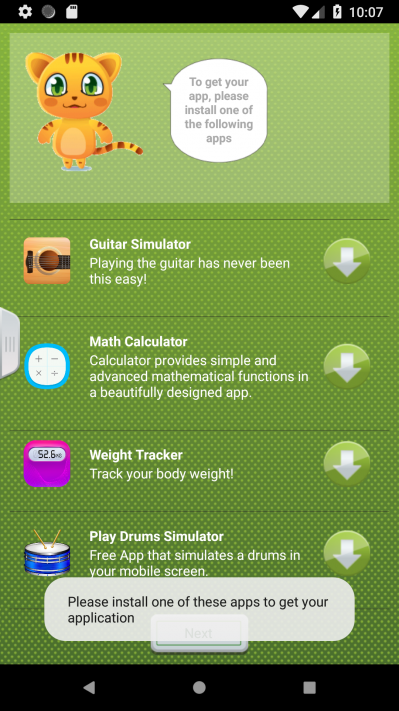

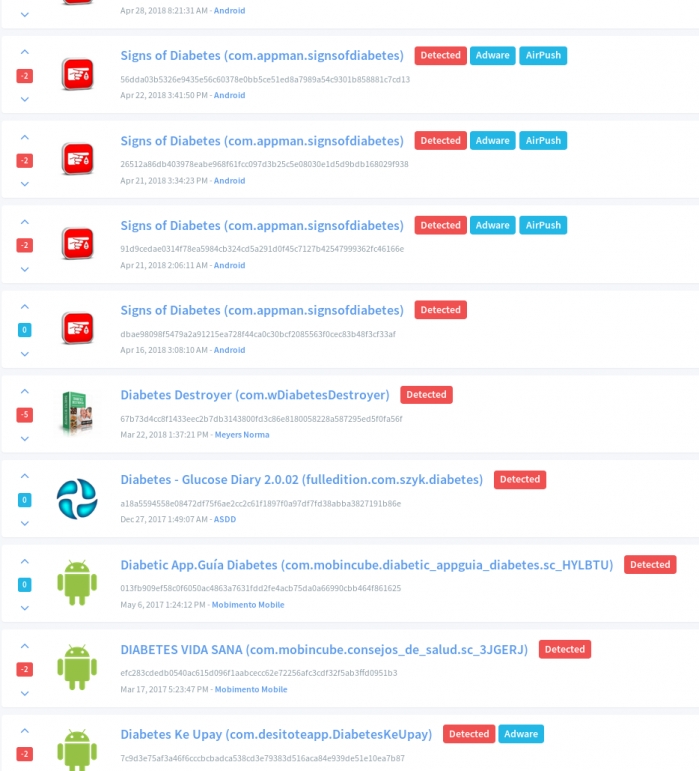

All of the applications shown in Figure 3 are either potentially unwanted apps (e.g. adware), or plain malware:
public void onCreate(Bundle arg4) {
super.onCreate(arg4);
this.actor = new Actor(((Context)this), TextUtils.getOperatorString(((Context)this)));
// show link to paid file when more than 2 SMS messages have been sent
if(this.getSharedPreferences(“KEY_PREFS”, 0).getInt(TextUtils.getDailyKey(), 0) > 2) {
this.showLastScreen(new Intent(((Context)this), ShowURL.class));
}
// check airplane mode is not enabled
if(Settings$System.getInt(this.getContentResolver(), “airplane_mode_on”, 0) != 0) {
this.showAirplaneDialog();
}
else {
// show dialog asking to send SMS messages
this.setContentView(0x7F030001); // layout:main
DevReg.sendOpening(((Context)this));
...
try {
// get the name of the real diabetes package to install from the assets/applications directory
filename = this.getAssets().list(“applications”)[0];
// get the filesize of the package
filesizemb = ((double)(this.getAssets().open(“applications/” + filename).available() / 0x100000));
}
catch(Exception v0) {
Log.e(“tag”, v0.getMessage());
}
// InstallTypeActivity is an activity to initiate the adkit
Intent intent = new Intent(((Context)this), InstallTypeActivity.class);
// When the adkit is installed, the riskware will resume and call this class
// which installs the real applications
intent.putExtra(“APPWALL_ACTION”, “fulledition.com.szyk.diabetes.KittyFinishActivity”);
// Messages to display in the adkit
intent.putExtra(“PARAMETER_ONE”, this.getString(0x7F060027)); // string:adpath_title_one “You are trying to install”
intent.putExtra(“PARAMETER_TWO”, filename);
intent.putExtra(“PARAMETER_THREE”, “(“ + String.format(“%.2f”, Double.valueOf(filesizemb)) + “ MB)”);
The conclusion is twofold:
Finally, note that mobile ransomware, while not listed in this study, may have a severe impact on a diabetic end-user: the smartphone is locked and cannot be used to monitor blood glucose levels until the phone has been uninfected.
The Darknet is well known for the illegal activities it offers [18, 19]. In fact, not all websites and services on the Darknet are necessarily illegal, but its anonymity, encryption and distributed architecture have attracted many criminals.
For patients with diabetes, this opens up an additional set of threats that we detail below.

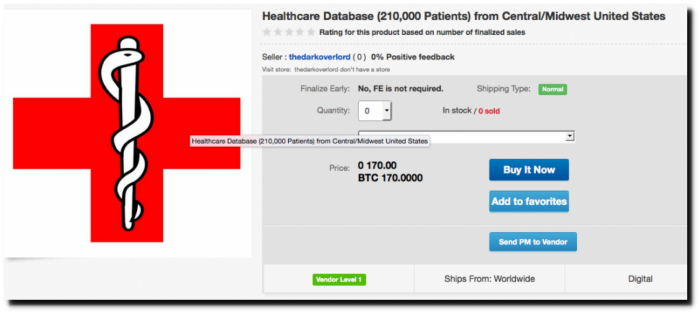

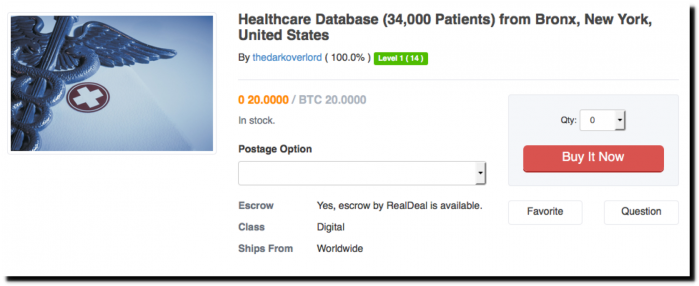

Medical records are extremely valuable because they contain a person’s name, address, national identity numbers (e.g. Social Security), and medical history. Besides the apparent attack of blackmailing people by threatening to leak their medical records, medical records are valuable to criminals because of other types of attacks they can help facilitate.
One of those types of attacks is identity theft, which is used to open bank accounts and apply for credit cards and loans. Buying stolen credit cards is becoming difficult for attackers because the credit card industry is getting very good at finding and stopping fraudulent transactions. However, stolen medical records have all the information an attacker may need to steal someone’s identity, get credit cards and loans in their name. Stolen medical records typically sell for $103 per record (compared to $3 per record for a stolen credit card). Online marketplaces have a significantly higher price, but online sellers typically negotiate a lower price.
Attackers will typically claim they are breaking into organizations that have access to medical tracking software. In October 2018, a user of thedarkoverlord posted a picture of a stolen medical record database as evidence that he had stolen medical records in his possession.
The username, the marketplace and item are no longer available for sale so we cannot confirm if this is correct. However, the data does appear to be from a medical office.

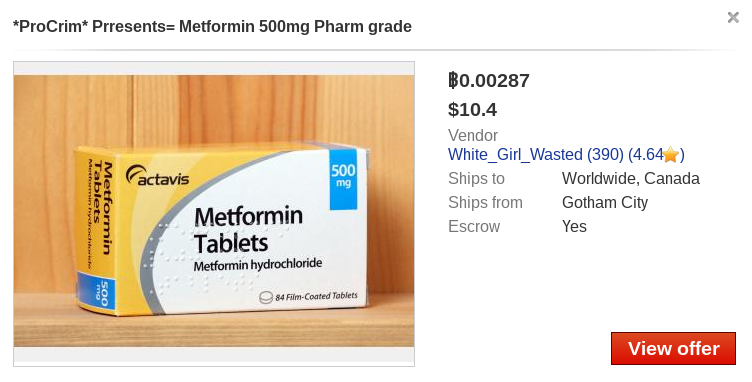

Users attempting to buy medicine and other drugs from the Darknet is nothing new. Some have estimated that the Darknet is the most prominent commerce location available for drugs in most countries. A casual user will quickly come across multiple sites that are selling drugs. A new wave of prescription drugs is being purchased illegally by users who cannot afford the medicine through traditional and legal pharmacies, but who desperately need it.
In some cases, the medicine is purchased cheaply because of connections or discounts from the sellers. In other cases, the medicine may be cheaper in a different country but has been illegally exported. Lantus is a popular insulin supplemental medicine. According to Pharmacy Times, the typical cost for this and similar medicine is around $400. The same medicine, in the same dosage, is being sold on the Darknet for $149 (Figure 9).

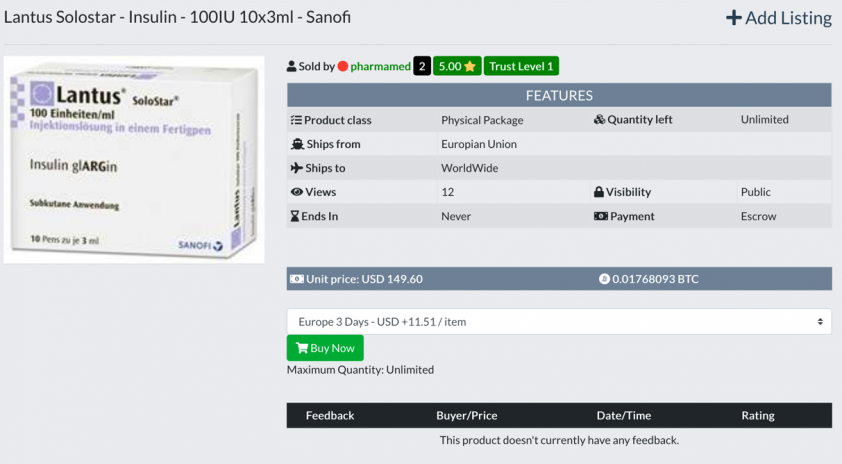

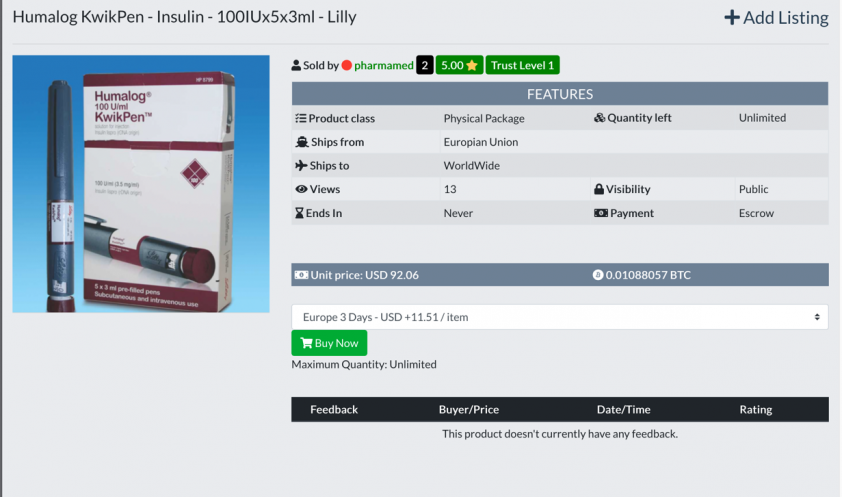

Humalog Kwikpen [20] is an insulin device given to people who have type 2 diabetes. At the time writing, the authors of this paper checked with five national insurance companies, including those offered under the United States Affordable Healthcare Act (commonly referred to as ObamaCare), and each of them covered the medicine for patients in the United States for approximately $95. Observe in Figure 10 the medicine is being sold on the Darknet for approximately $92. One can observe this medicine is primarily being advertised to buyers from the United States. In all likelihood, no one is going to buy this medicine from an illegal source just to save a few dollars. However, for those who have no healthcare insurance, the cost of the medicine is around $360. According to [21], there are 44 million people in the United States that do not have any form of health insurance. There are also an additional 38 million people who have inadequate insurance. It is crucial to remember that users of this medicine need an ongoing supply for the rest of their lives. If they do not take it, they will be taking a significant and perhaps even fatal risk.

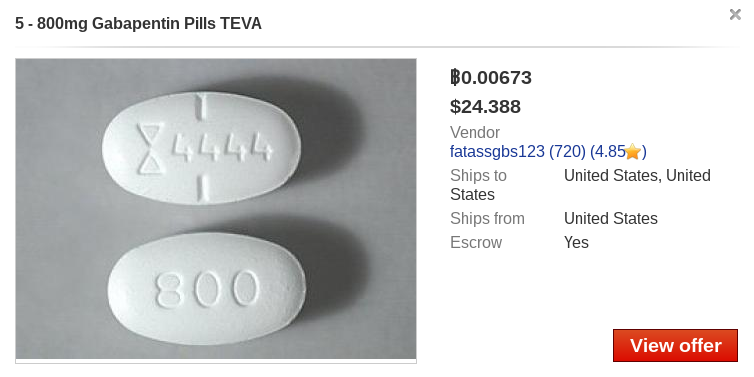

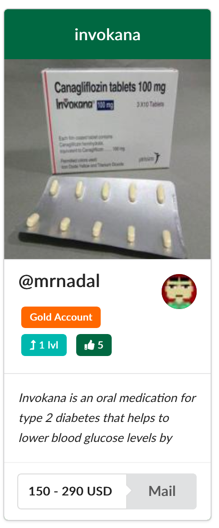

We also found several other diabetes-related medicines for sale: Gabapentin pills used for the treatment of neuropathic pain caused by diabetic neuropathy, Metformin to decrease the amount of sugar the intestine absorbs and make the body more sensitive to insulin, etc.
Medicine sold for more complicated treatment is often more difficult to find. Invokana is advertised as the only type 2 diabetes medicine approved by the United States government to help lower A1C and reduce the risk of major cardiovascular events such as strokes and heart attacks. The retail price of this medicine can easily reach over $600. The screenshot shown in Figure 13, which was taken on 29 May 2019 from the Silk Roads 3.0 marketplace, shows the medicine being sold for $150 to $290 (price varies depending on dosage).
Of course, one of the things we do not know is whether this medicine is real. As reported in [22], often the medicine is legitimate and being sold after having been purchased in a country that has lower prices, or it may have been stolen or obtained through other means of fraud. Yet, there have been several cases where the medicine quality was reduced, mixed in with other products, or even fake. In February 2019, [23] reported that school pupils from Sussex in the UK purchased anti‑anxiety pills which probably also contained Fentanyl, a powerful but dangerous painkiller.
The security and privacy of IoT is often close to non-existent. On investigating this connected glucose sensor it came as a nice surprise to find clear signs that the vendor had paid attention to this aspect. We summarize the major issues we found:
