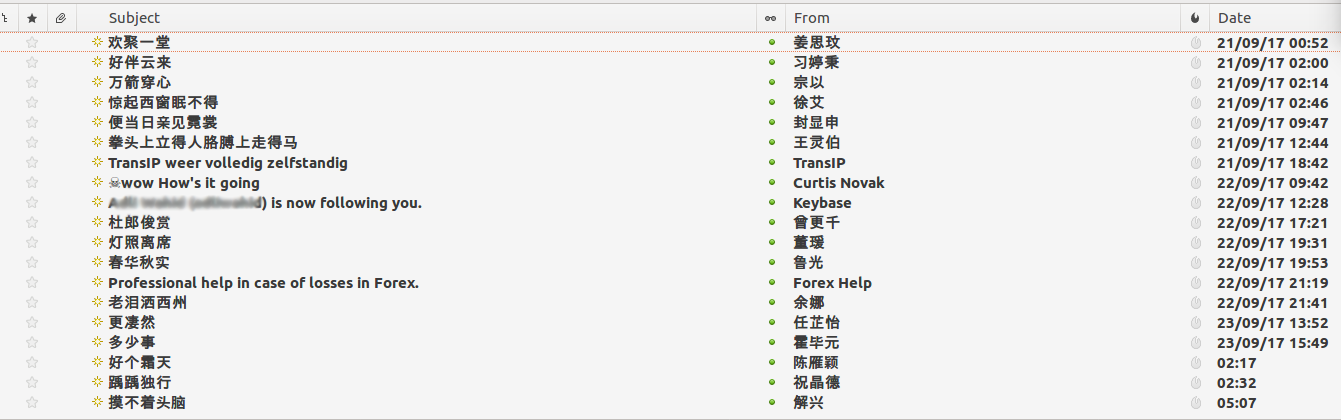

Seeing a number of Chinese-language spam emails arrive in the inbox of a personal email account (where, for research purposes, barely any spam filtering takes place) reminded me recently of the first task of any spam filter: to keep our mailboxes tidy and thus reduce the likelihood of missing an email that is actually important.
Chinese-language spam emails hitting the inbox of a personal email account.
On top of that, spam filters also play an essential role in improving our digital security, by blocking both phishing emails and those that carry malware.
For understandable reasons, security vendors increasingly focus on this aspect of filtering unwanted emails and thus often brand their solutions as 'email security solutions'. It is worth keeping in mind though that, apart from the content, there is no difference between spam that advertises counterfeit goods, spam that carries (or links to) malware, and spam that tries to lure you into entering your personal details on a fake website.
Thus, when we report that 'spam filters' block the overwhelming majority of spam, we mean this to include various kinds of untargeted malicious emails and thus to include the 'email security' part of the products.
In this test 14 full solutions were put through their paces, with four products achieving a VBSpam award, and no fewer than nine products achieving a VBSpam+ award.
August 2017, when this test was run, saw some fairly large malware-spreading campaigns. They used lures that have long been typical for such spam emails, such as missed voicemail messages or payment receipts. The attachments contained a zip or rar file, inside which a downloader was stored, which in turn would download second-stage malware – the real payload. In many cases (depending on the location of the victim), this payload may have been the Locky ransomware.
Locky has been one of the most successful ransomware families and is one that you really don't want to get hit by: if you do, and you don't have a recent back-up, you'll have to pay hundreds of dollars to get your files back, as well as being left with the bad aftertaste of having paid a group of criminals.
But if you were using an email security solution, the chances of you being hit by Locky would have been very small: all but two full solutions in our test blocked each of the more than 7,000 emails in this campaign – the other two missed only a few.
In fact, 99.9% of the emails were sent from an IP address that, at the time of sending, was listed on Spamhaus's ZEN list. Lists like these are used by many ISPs to do some filtering before the emails reach their customers' inboxes.
Locky is one of the most well analysed malware families out there, and this is for a large part because it is sent to many spam traps. And it definitely has its victims – but their numbers are probably many times smaller than the size of the campaign might suggest
Among the other spam, catch rates were good too, with most products catching 99.9% or more – though as always, we like to point out that numbers in our tests do not automatically translate to a real-world scenario.
No product had a perfect score though, and one particular email stood out for being missed by many products. It looked like a phishing email (the link had stopped working when we analysed it), but the body of the email contained no text, just a single image, embedded as a data URI, thus leaving little opportunity for a content filter to block the email.

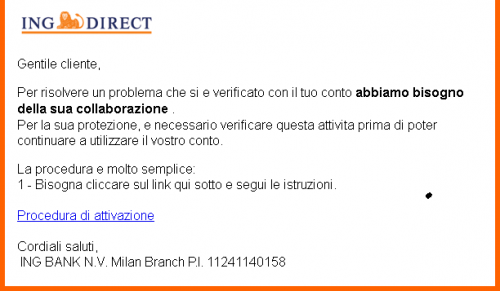

One particular email stood out for being missed by many products.
Moreover, the email was sent from a compromised server in Chile and linked to another compromised server in Brazil: both the use of compromised servers and the fact that such servers were located in non-Western countries meant that they were more easily overlooked.
This was a good month for all products but one in the test: catch rates for most products were very close to 100%, with only three products generating false positives.
OnlyMyEmail, ESET, Fortinet and Bitdefender each missed fewer than ten spam emails among the corpus of over 280,000 emails. They, as well as Axway, IBM, the two Kaspersky products and Libra Esva, earn a VBSpam+ award.
Forcepoint's Email Security Cloud product was new to the test. Forcepoint, previously known as Websense and Raytheon|Websense, saw its cloud offering easily earn a VBSpam award in its first participation, and the company will no doubt be pleased with the fact that all emails carrying malware were blocked.
CYREN, the product of a relatively recent merger of Commtouch, Eleven and Frisk, was also new to the test and made a bit of a false start, missing thousands of emails, mostly from a single Chinese language campaign. Based on our observation of the product in the months preceding the test, we believe that this was a rather unfortunate incident, but we were not able to award it a VBSpam award on this occasion.
SC rate: 99.93%
FP rate: 0.00%
Final score: 99.92
Project Honey Pot SC rate: 99.95%
Abusix SC rate: 99.90%
Newsletters FP rate: 0.4%
Malware SC rate: 100.00%
Speed:
| 10% |  |
50% | |
95% | |
98% | |
SC rate: 99.997%
FP rate: 0.00%
Final score: 99.997
Project Honey Pot SC rate: 99.996%
Abusix SC rate: 99.999%
Newsletters FP rate: 0.0%
Malware SC rate: 100.00%
Speed:
| 10% | |
50% | |
95% | |
98% | |
SC rate: 96.80%
FP rate: 0.00%
Final score: 96.80
Project Honey Pot SC rate: 99.88%
Abusix SC rate: 91.16%
Newsletters FP rate: 0.0%
Malware SC rate: 100.00%
Speed:
| 10% | |
50% | |
95% | |
98% | |
SC rate: 99.999%
FP rate: 0.00%
Final score: 99.999
Project Honey Pot SC rate: 99.999%
Abusix SC rate: 99.998%
Newsletters FP rate: 0.0%
Malware SC rate: 99.99%
Speed:
| 10% | |
50% | |
95% | |
98% | |
SC rate: 99.79%
FP rate: 0.20%
Final score: 98.80
Project Honey Pot SC rate: 99.67%
Abusix SC rate: 99.99%
Newsletters FP rate: 0.4%
Malware SC rate: 100.00%
Speed:
| 10% | |
50% | |
95% |  |
98% | |
SC rate: 99.999%
FP rate: 0.00%
Final score: 99.999
Project Honey Pot SC rate: 99.999%
Abusix SC rate: 99.997%
Newsletters FP rate: 0.0%
Malware SC rate: 100.00%
Speed:
| 10% | |
50% | |
95% | |
98% | |
SC rate: 99.99%
FP rate: 0.00%
Final score: 99.99
Project Honey Pot SC rate: 99.98%
Abusix SC rate: 100.00%
Newsletters FP rate: 0.0%
Malware SC rate: 100.00%
Speed:
| 10% | |
50% | |
95% | |
98% | |
SC rate: 99.99%
FP rate: 0.00%
Final score: 99.99
Project Honey Pot SC rate: 99.99%
Abusix SC rate: 99.98%
Newsletters FP rate: 0.0%
Malware SC rate: 100.00%
Speed:
| 10% | |
50% | |
95% | |
98% | |
SC rate: 99.99%
FP rate: 0.00%
Final score: 99.99
Project Honey Pot SC rate: 99.99%
Abusix SC rate: 99.99%
Newsletters FP rate: 0.0%
Malware SC rate: 100.00%
Speed:
| 10% | |
50% | |
95% | |
98% | |
SC rate: 99.98%
FP rate: 0.00%
Final score: 99.98
Project Honey Pot SC rate: 99.97%
Abusix SC rate: 99.99%
Newsletters FP rate: 0.0%
Malware SC rate: 100.00%
Speed:
| 10% | |
50% | |
95% | |
98% | |
SC rate: 99.9996%
FP rate: 0.00%
Final score: 99.98
Project Honey Pot SC rate: 100.00%
Abusix SC rate: 99.999%
Newsletters FP rate: 0.4%
Malware SC rate: 100.00%
Speed:
| 10% | |
50% | |
95% | |
98% | |
SC rate: 99.98%
FP rate: 0.09%
Final score: 99.29
Project Honey Pot SC rate: 99.97%
Abusix SC rate: 99.99%
Newsletters FP rate: 5.6%
Malware SC rate: 100.00%
Speed:
| 10% | |
50% | |
95% | |
98% | |
SC rate: 99.77%
FP rate: 0.06%
Final score: 99.47
Project Honey Pot SC rate: 99.67%
Abusix SC rate: 99.96%
Newsletters FP rate: 0.0%
Malware SC rate: 99.92%
Speed:
| 10% | |
50% | |
95% | |
98% |  |
SC rate: 99.98%
FP rate: 0.02%
Final score: 99.83
Project Honey Pot SC rate: 99.96%
Abusix SC rate: 99.999%
Newsletters FP rate: 1.8%
Malware SC rate: 100.00%
Speed:
| 10% | |
50% | |
95% | |
98% | |
SC rate: 96.51%
FP rate: 0.02%
Final score: 96.44
Project Honey Pot SC rate: 98.90%
Abusix SC rate: 92.12%
Newsletters FP rate: 0.0%
Malware SC rate: 98.39%
SC rate: 95.26%
FP rate: 0.02%
Final score: 95.18
Project Honey Pot SC rate: 97.06%
Abusix SC rate: 91.94%
Newsletters FP rate: 0.0%
Malware SC rate: 98.33%
SC rate: 56.85%
FP rate: 0.00%
Final score: 56.85
Project Honey Pot SC rate: 76.66%
Abusix SC rate: 20.57%
Newsletters FP rate: 0.0%
Malware SC rate: 1.13%
SC rate: 7.55%
FP rate: 0.00%
Final score: 7.55
Project Honey Pot SC rate: 7.07%
Abusix SC rate: 8.44%
Newsletters FP rate: 0.0%
Malware SC rate: 0.57%
SC rate: 96.88%
FP rate: 0.00%
Final score: 96.88
Project Honey Pot SC rate: 95.32%
Abusix SC rate: 99.74%
Newsletters FP rate: 0.0%
Malware SC rate: 99.90%
SC rate: 97.19%
FP rate: 0.00%
Final score: 97.19
Project Honey Pot SC rate: 95.79%
Abusix SC rate: 99.77%
Newsletters FP rate: 0.0%
Malware SC rate: 99.90%
SC rate: 57.55%
FP rate: 0.05%
Final score: 57.33
Project Honey Pot SC rate: 71.37%
Abusix SC rate: 32.25%
Newsletters FP rate: 0.0%
Malware SC rate: 0.16%
| True negatives | False positives | FP rate | False negatives | True positives | SC rate | VBSpam | Final score | |
| Axway | 6642 | 0 | 0.00% | 197 | 283408 | 99.93% |  |
99.92 |
| Bitdefender | 6642 | 0 | 0.00% | 8 | 283597 | 99.997% | |
99.997 |
| CYREN | 6642 | 0 | 0.00% | 9063 | 274542 | 96.80% | X | 99.80 |
| ESET | 6642 | 0 | 0.00% | 3 | 283602 | 99.999% | |
99.999 |
| Forcepoint | 6629 | 13 | 0.20% | 607 | 282998 | 99.79% |  |
99.80 |
| FortiMail | 6631 | 0 | 0.00% | 4 | 282731 | 99.999% | |
99.999 |
| IBM | 6642 | 0 | 0.00% | 33 | 283572 | 99.99% | |
99.99 |
| Kaspersky for Exchange | 6642 | 0 | 0.00% | 30 | 283575 | 99.99% | |
99.99 |
| Kaspersky LMS | 6642 | 0 | 0.00% | 31 | 283574 | 99.99% | |
99.99 |
| Libra Esva | 6642 | 0 | 0.00% | 68 | 283537 | 99.98% | |
99.98 |
| OnlyMyEmail | 6642 | 0 | 0.00% | 1 | 283604 | 99.9996% | |
99.98 |
| Scrollout | 6636 | 6 | 0.09% | 60 | 283545 | 99.98% | |
99.92 |
| SpamTitan | 6638 | 4 | 0.06% | 652 | 282953 | 99.77% | |
99.47 |
| ZEROSPAM | 6641 | 1 | 0.02% | 68 | 283537 | 99.98% | |
99.83 |
| IBM X-Force Combined* | 6641 | 1 | 0.02% | 9897 | 273708 | 96.51% | N/A | 96.44 |
| IBM X-Force IP* | 6641 | 1 | 0.02% | 13455 | 270150 | 95.26% | N/A | 95.18 |
| IBM X-Force - URL* | 6642 | 0 | 0.00% | 122376 | 161229 | 56.85% | N/A | 56.85 |
| Spamhaus DBL* | 6642 | 0 | 0.00% | 262183 | 21422 | 7.55% | N/A | 7.55 |
| Spamhaus ZEN* | 6642 | 0 | 0.00% | 8849 | 274756 | 96.88% | N/A | 96.88 |
| Spamhaus ZEN+DBL* | 6642 | 0 | 0.00% | 7958 | 275647 | 97.19% | N/A | 97.19 |
| URIBL* | 6639 | 3 | 0.05% | 120386 | 163219 | 57.55% | N/A | 57.33 |
*The IBM X-Force, Spamhaus and URIBL products are partial solutions and their performance should not be compared with that of other products.
(Please refer to the text for full product names and details.)
| Newsletters | Malware | Project Honey Pot | Abusix | STDev† | Speed | ||||||||
| False positives | FP rate | False negatives | SC rate | False negatives | SC rate | False negatives | SC rate | 10% | 50% | 95% | 98% | ||
| Axway | 1 | 0.4% | 0 | 100.00% | 93 | 99.95% | 104 | 99.90% | 0.23 | |
|
|
|
| Bitdefender | 0 | 0.0% | 0 | 100.00% | 7 | 99.996% | 1 | 99.999% | 0.02 | |
|
|
|
| CYREN | 0 | 0.0% | 0 | 100.00% | 213 | 99.88% | 8850 | 91.16% | 5.63 | |
|
|
|
| ESET | 0 | 0.0% | 1 | 99.99% | 1 | 99.999% | 2 | 99.998% | 0.01 | |
|
|
|
| Forcepoint | 1 | 0.4% | 0 | 100.00% | 597 | 99.67% | 10 | 99.99% | 0.29 | |
|
|
|
| FortiMail | 0 | 0.0% | 0 | 100.00% | 1 | 99.999% | 3 | 99.997% | 0.01 | |
|
|
|
| IBM | 0 | 0.0% | 0 | 100.00% | 33 | 99.98% | 0 | 100.00% | 0.05 | |
|
|
|
| Kaspersky for Exchange | 0 | 0.0% | 0 | 100.00% | 14 | 99.99% | 16 | 99.98% | 0.04 | |
|
|
|
| Kaspersky LMS | 0 | 0.0% | 0 | 100.00% | 16 | 99.99% | 15 | 99.99% | 0.05 | |
|
|
|
| Libra Esva | 0 | 0.0% | 0 | 100.00% | 61 | 99.97% | 7 | 99.99% | 0.08 | |
|
|
|
| OnlyMyEmail | 1 | 0.4% | 0 | 100.00% | 0 | 100.00% | 1 | 99.999% | 0.01 | |
|
|
|
| Scrollout | 16 | 5.6% | 0 | 100.00% | 52 | 99.97% | 8 | 99.99% | 0.07 | |
|
|
|
| SpamTitan | 0 | 0.0% | 6 | 99.92% | 607 | 99.67% | 45 | 99.96% | 0.64 | |
|
|
|
| ZEROSPAM | 5 | 1.8% | 0 | 100.00% | 67 | 99.96% | 1 | 99.999% | 0.17 | |
|
|
|
| IBM X-Force Combined* | 0 | 0.0% | 118 | 93.39% | 2009 | 98.90% | 7888 | 92.12% | 4.81 | N/A | N/A | N/A | N/A |
| IBM X-Force IP* | 0 | 0.0% | 122 | 98.33% | 5386 | 97.06% | 8069 | 91.94% | 5.48 | N/A | N/A | N/A | N/A |
| IBM X-Force - URL* | 0 | 0.0% | 7237 | 1.13% | 42818 | 76.66% | 79558 | 20.57% | 18.58 | N/A | N/A | N/A | N/A |
| Spamhaus DBL* | 0 | 0.0% | 7278 | 0.57% | 170472 | 7.07% | 91711 | 8.44% | 8.44 | N/A | N/A | N/A | N/A |
| Spamhaus ZEN* | 0 | 0.0% | 7 | 99.90% | 8592 | 95.32% | 257 | 99.74% | 2.56 | N/A | N/A | N/A | N/A |
| Spamhaus ZEN+DBL* | 0 | 0.0% | 7 | 99.90% | 7725 | 95.79% | 233 | 99.77% | 2.46 | N/A | N/A | N/A | N/A |
| URIBL* | 0 | 0.0% | 7308 | 0.16% | 52524 | 71.37% | 67862 | 32.25% | 18.25 | N/A | N/A | N/A | N/A |
*The Spamhaus products, IBM X-Force and URIBL are partial solutions and their performance should not be compared with that of other products. None of the queries to the IP blacklists included any information on the attachments; hence their performance on the malware corpus is added purely for information.
†The standard deviation of a product is calculated using the set of its hourly spam catch rates.
|
0-30 seconds | |
30 seconds to two minutes | |
two minutes to 10 minutes |  |
more than 10 minutes |
(Please refer to the text for full product names.)
| Hosted solutions | Anti-malware | IPv6 | DKIM | SPF | DMARC | Multiple MX-records | Multiple locations |
| Forcepoint | Forcepoint Advanced Malware Detection | √ | √ | √ | √ | √ | |
| OnlyMyEmail | Proprietary (optional) | √ | √ | * | √ | √ | |
| Vade Secure MailCube | DrWeb; proprietary | √ | √ | √ | √ | √ | |
| ZEROSPAM | ClamAV | √ | √ | √ |
* OnlyMyEmail verifies DMARC status but doesn't provide feedback at the moment.
(Please refer to the text for full product names.)
| Local solutions | Anti-malware | IPv6 | DKIM | SPF | DMARC | Interface | |||
| CLI | GUI | Web GUI | API | ||||||
| Axway MailGate | Kaspersky, McAfee | √ | √ | √ | √ | ||||
| Bitdefender | Bitdefender | √ | √ | √ | √ | ||||
| ESET | ESET Threatsense | √ | √ | √ | √ | √ | √ | ||
| FortiMail | Fortinet | √ | √ | √ | √ | √ | √ | √ | |
| GFI MailEssentials | Five anti-virus engines | √ | √ | √ | |||||
| IBM | Sophos; IBM Remote Malware Detection | √ | √ | √ | |||||
| Kaspersky LMS | Kaspersky Lab | √ | √ | √ | √ | ||||
| Kaspersky SMG | Kaspersky Lab | √ | √ | √ | √ | ||||
| Libra Esva | ClamAV; others optional | √ | √ | √ | √ | ||||
| NoSpamProxy | Cyren | √ | √ | √ | |||||
| Scrollout | ClamAV | √ | √ | √ | √ | ||||
| Sophos | Sophos | √ | √ | √ | |||||
| SpamTitan | Kaspersky; ClamAV | √ | √ | √ | √ | √ | √ | ||
(Please refer to the text for full product names.)

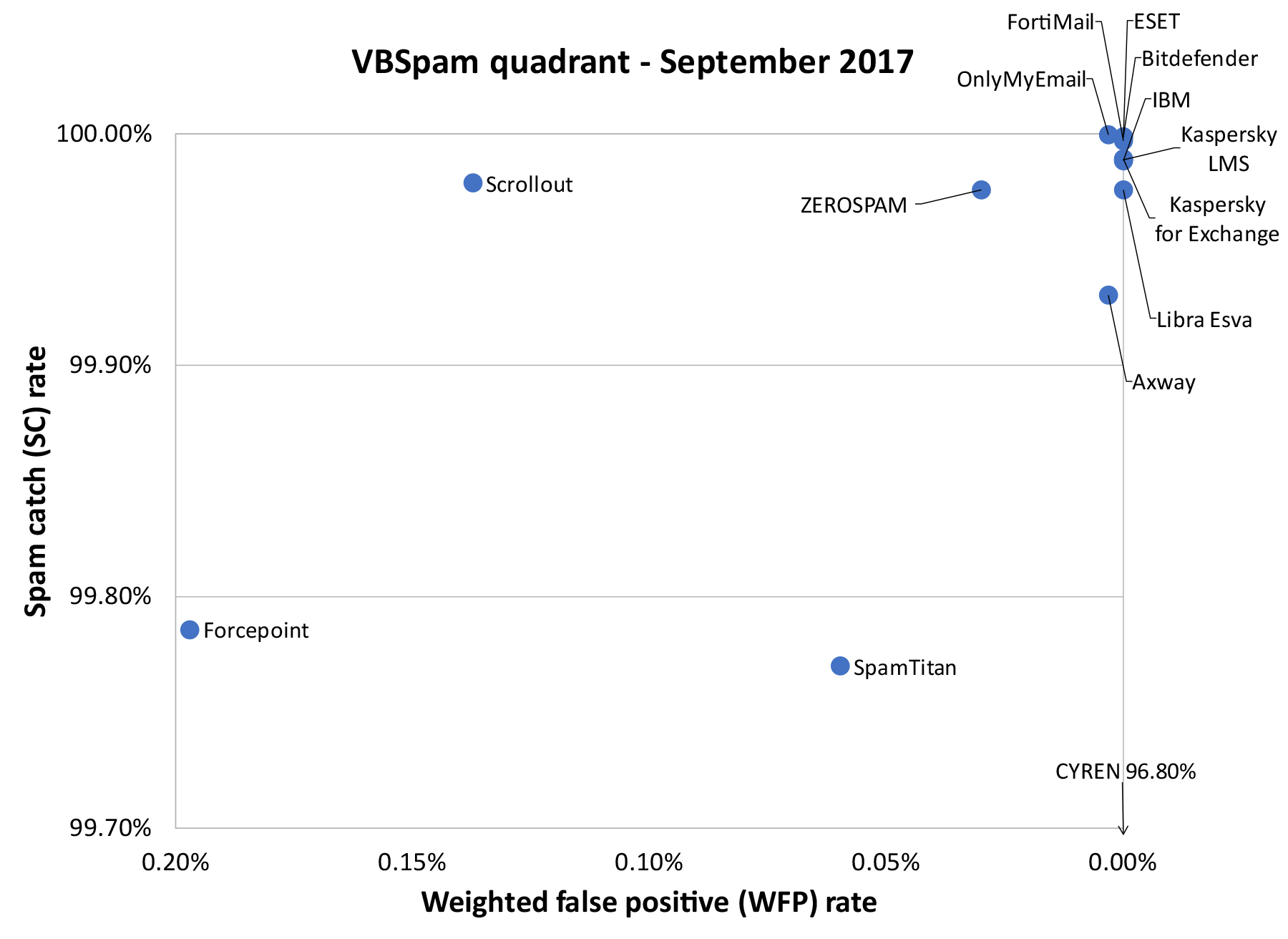

| Product | Final score |
| ESET | 99.999 |
| Fortimail | 99.999 |
| Bitdefender | 99.997 |
| Kaspersky for Exchange | 99.99 |
| Kaspersky LMS | 99.99 |
| IBM | 99.99 |
| OnlyMyEmail | 99.98 |
| Libra Esva | 99.98 |
| Axway | 99.92 |
| ZEROSPAM | 99.83 |
| SpamTitan | 99.47 |
| Scrollout | 99.29 |
| Forcepoint | 98.80 |
| CYREN | 96.80 |
(Please refer to the text for full product names.)
For most participating vendors and most end-users alike, this report contains good news: spam, including most malicious emails, is dealt with rather well. Both spam and malware are notoriously volatile though, and we will continue to keep a close eye on filters' performance.
The next test report, which is due to be published in December 2017, will continue to look at all aspects of spam. Those interested in submitting a product are asked to contact [email protected].
The full VBSpam test methodology can be found at https://www.virusbulletin.com/testing/vbspam/vbspam-methodology/.
The test ran for 16 days, from 12am on 12 August to 12am on 28 August 2017.
The test corpus consisted of 290,532 emails. 283,605 of these were spam, 183,440 of which were provided by Project Honey Pot, with the remaining 100,165 spam emails provided by spamfeed.me, a product from Abusix. There were 6,642 legitimate emails ('ham') and 285 newsletters.
Moreover, 7,320 emails from the spam corpus were found to contain a malicious attachment; though we report separate performance metrics on this corpus, it should be noted that these emails were also counted as part of the spam corpus.
Emails were sent to the products in real time and in parallel. Though products received the email from a fixed IP address, all products had been set up to read the original sender's IP address as well as the EHLO/HELO domain sent during the SMTP transaction, either from the email headers or through an optional XCLIENT SMTP command. Consequently, products were able to filter email in an environment that was very close to one in which they would be deployed in the real world.
For those products running in our lab, we ran them as virtual machines on a VMware ESXi cluster. As different products have different hardware requirements – not to mention those running on their own hardware, or those running in the cloud – there is little point comparing the memory, processing power or hardware the products were provided with; we followed the developers' requirements and note that the amount of email we receive is representative of that received by a small organization.
Although we stress that different customers have different needs and priorities, and thus different preferences when it comes to the ideal ratio of false positives to false negatives, we created a one-dimensional 'final score' to compare products. This is defined as the spam catch (SC) rate minus five times the weighted false positive (WFP) rate. The WFP rate is defined as the false positive rate of the ham and newsletter corpora taken together, with emails from the latter corpus having a weight of 0.2:
WFP rate = (#false positives + 0.2 * min(#newsletter false positives , 0.2 * #newsletters)) / (#ham + 0.2 * #newsletters)
Final score = SC - (5 x WFP)
In addition, for each product, we measure how long it takes to deliver emails from the ham corpus (excluding false positives) and, after ordering these emails by this time, we colour-code the emails at the 10th, 50th, 95th and 98th percentiles:
|
(green) = up to 30 seconds |
|
(yellow) = 30 seconds to two minutes |
|
(orange) = two to ten minutes |
|
(red) = more than ten minutes |
Products earn VBSpam certification if the value of the final score is at least 98 and the 'delivery speed colours' at 10 and 50 per cent are green or yellow and that at 95 per cent is green, yellow or orange.
Meanwhile, products that combine a spam catch rate of 99.5% or higher with a lack of false positives, no more than 2.5% false positives among the newsletters and 'delivery speed colours' of green at 10 and 50 per cent and green or yellow at 95 and 98 per cent earn a VBSpam+ award.
