VB2014 paper: Methods of malware persistence on Mac OS X

Apple’s attempt at an anti-virus product is internally referred to as XProtect. Implemented within the CoreServicesUIAgent, it uses signatures from /System/Library/CoreServices/CoreTypes.bundle/Contents/Resources/XProtect.plist to detect OS X malware.

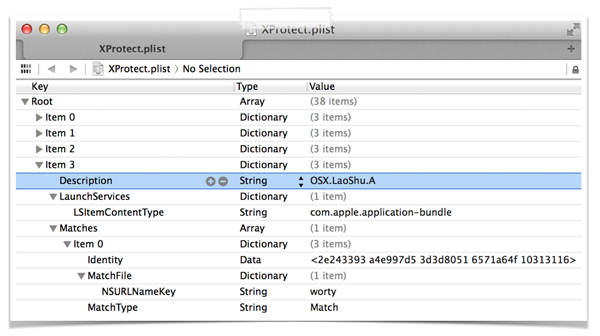

Figure 2 shows an entry from the XProtect signature file.

Figure 2. XProtect’s signature for LaoShu.A.

The highlighted entry in Figure 2 aims to detect the OSX/LaoShu.A malware by matching a SHA1 hash and a filename (‘worty’). While the benefit of such an exact match/detection scheme is zero false positives, there are several major downsides. For one, a slight change in the malware (the renaming of a file, or a recompilation to change the hash), will prevent a match, and thus detection, from being made. The malware will remain undetected and will be able to execute. Another obvious downside to XProtect’s signature-based malware detection scheme is that new malware will never be detected.

Besides the weaknesses in the detection scheme used by XProtect, it is plagued by other design issues. In its current implementation, XProtect only scans binaries that contain a quarantine attribute. This attribute is set by the application that downloaded the binary (e.g. a browser), not the OS. This is problematic, as an exploit-based attack that manually downloads malware will, of course, do so without setting the quarantine attribute. As such, these binaries will not be scanned, allowing downloaded malware to execute without fear of detection.

According to Apple, Gatekeeper helps protect Macs from malicious apps that are downloaded and installed from the Internet [6].

Figure 3. Gatekeeper in action.

Contrary to popular belief, Gatekeeper (like XProtect), is fairly limited in the attacks it can prevent. Specifically, it is limited to only preventing attacks where users are coerced into downloading and installing malicious content (e.g. fake Flash installers or ‘media plug-ins’), from infected or rogue websites. This is due to the fact that Gatekeeper will only examine binaries that contain a quarantine attribute. As previously mentioned, this attribute must be set by the downloading application. Thus binaries downloaded as the result of a ‘drive by’ exploit-based attack will not be subjected to examination. Interestingly, this is precisely how employees of Apple, Facebook and Twitter were recently infected by malware which ‘bypassed OS X Gatekeeper protection’ [7].

Another shortcoming is based on the fact that, in its default configuration, Gatekeeper may allow any signed application to execute. Hence if a malware sample is signed with a valid Apple Developer ID (code-signing certificate), it may be able to ‘bypass the Gatekeeper security feature’ [8].

Borrowing from iOS, OS X now verifies all binary signatures. This is important as it allows the OS to verify that binaries have not been subverted (e.g. infected by a virus). Binary infection is a powerful technique as it affords an attacker a way to persist, hide, and inherit trust. For example, imagine a malicious piece of code that infects Safari. Every time the user launches Safari, the malicious code is also executed (persistence). Since the malicious code may exist solely within the infected binary, no external malicious files or processes are required (stealth). Finally, as the browser is expected to access network resources, malicious code hosted within its process space should also be able to access the network (inheriting trust), even if a personal firewall is installed.

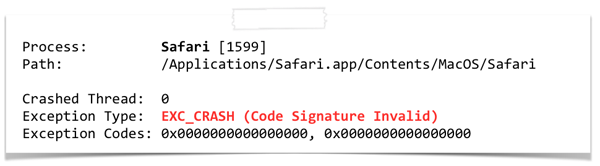

So what happens if malware infects a signed application or binary? Well, when loading signed binaries (or applications), the OS loader will check the digital signature. Any modifications will invalidate this signature, easily allowing the loader to detect any subversions. By design, the OS loader will then immediately terminate (crash) the modified binary.

Figure 4. OS X loader terminating a modified signed application.

On OS X (unlike iOS), unsigned apps are allowed to execute freely. During the loading process, the OS loader checks whether the binary is signed by looking for an embedded LC_CODE_SIGNATURE block. If it finds one, it verifies the binary’s signature. However, research has revealed that if the LC_CODE_SIGNATURE signature block is removed, the loader performs no verifications, allowing the binary to be modified with no consequences. This is a rather big security issue, as any signed application can be unsigned, then infected with viral code, and will still be allowed to execute.

To illustrate this security weakness, a python script (unsign.py) was created to ‘unsign’ and infect Apple’s signed applications. The script is shown in Figure 5.

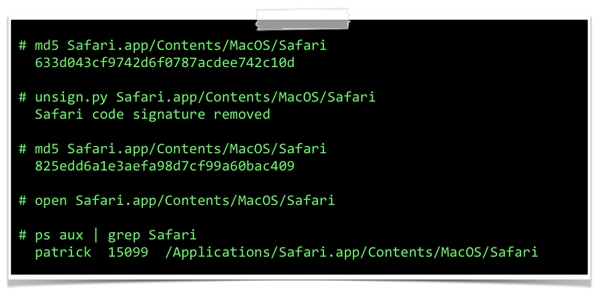

Figure 5. Unsigning (and modifying) an Apple signed application.

As shown in Figure 4, Safari was previously terminated when the OS loader detected a modification. However, as Figure 5 illustrates, once unsigned, Safari, can be modified, and still able to execute without interference or termination.

In order to protect the kernel from malicious code (i.e. rootkits), all kernel extensions (or ‘kexts’) are required to be signed on OS X Mavericks. An unsigned or modified kext will fail to load. Unfortunately for Apple, it turns out that this anti-malware mechanism is trivial to bypass. The first method of bypassing these code-signing requirements is described in [9]. In a nutshell, the user-mode daemon that loads kernel extensions (kextd) is responsible for verifying the signature. Yes, the signature is verified in user mode – fail! This is clearly a security issue, since it means that an attacker can easily subvert (turn off) the user-mode checks, then load any unsigned kext. As described in [9], this can be accomplished by injecting code into the kextd, then patching out the code-signing checks (in the checkKextSignature() function). For illustrative purposes, this can also be accomplished via a debugger, as shown in Figure 6.

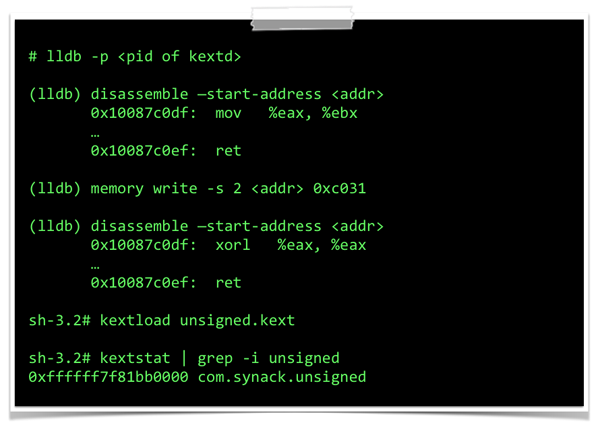

Figure 6. Patching out kext code-signing requirements.

The publicly described technique requires some pretty low-level hacking (e.g. code injection and in-memory patching). Research performed at the start of the year revealed a non-public, 0-day technique that allowed any unsigned kext to be loaded. (This technique (or a slight variation) was later discussed independently at Black Hat Asia by Team T5 [10].) By first stopping the daemon that is responsible for loading kernel extensions (kextd), then attempting to load the unsigned kext with the kextload command, an alternate code path is executed. This code path loads the kext directly into the kernel, bypassing the logic that enforces the kext code-signing requirements.

In the case of computer security, ignorance is not bliss. The various weaknesses in the OS X anti-malware/security mechanisms presented above should be a cause for concern for the ever-growing Mac user base, especially as OS X malware is an ever-growing threat. One way to combat such threats is to gain a thorough understanding of the Mac system startup process, identifying methods of persistence that are abused by OS X malware. With this information, persistent malware may be detected generically or, ideally, even prevented.

Starting at the lowest level, there are several options for persistence. While these options are complex, and often hardware specific, they run ‘below’ (before) the OS, and thus are very difficult to detect. Possible low-level options for persistence may include: re-flashing the firmware, installing a malicious EFI component, or even infecting boot.efi. It should be noted that, due to the complexities of these techniques, each could fill a paper unto themselves. For a more in-depth analysis of low-level methods of persistence, interested readers should consult [12], an intriguing paper on Mac EFI rootkits.

Since code in the kernel runs at the highest privilege level, it is a great place for advanced malware to live. Malware that executes here is often referred to as a rootkit. It is fairly trivial to create a persistent kernel extension that will automatically be executed by the OS whenever the computer is restarted. First, a kext can be created via the ‘Generic Kernel Extension’ template in XCode, as described in Apple’s documentation [13]. It is important to set the kext’s match category (in its Info.plist) to ‘IOResources.’ As described in [11], this is ‘a special provider class that provides system-wide resources’ and ensures that, once installed, the kext will automatically be started by OS X.

To install a kext persistently, it should be copied into one of the OS X kext directories: /System/Library/Extensions or /Library/Extensions.

Once copied to an install directory, the kext should be set to be owned by root and, optionally, the kernel cache rebuilt. If these steps are followed, the kext will automatically be loaded each time the OS is (re)loaded.

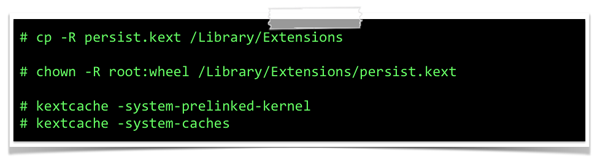

Figure 7. Installing a persistent kernel extension.

As mentioned previously, starting with OS X Mavericks, kext extensions must be signed. However, malware may abuse several previously stated methods in order to bypass this requirement.

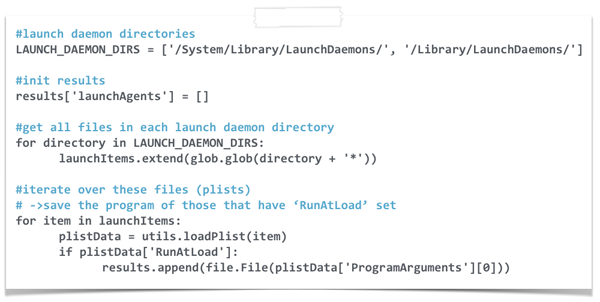

While code that runs in the kernel is very powerful, it is difficult to get right. Running in user mode is far simpler and thus often preferable. Launch daemons and agents are the ‘Apple-approved’ way to persist non-application binaries (e.g. software updaters, anti-virus products, etc.). Both launch daemons and launch agents are commonly abused by OS X malware as a means to gain persistence. Launch daemons are non interactive, and run before user login. On the other hand, launch agents run once the user has logged in, and may be interactive. Creating a persistent launched daemon or agent is as simple as creating the binary, then placing a configuration property list in one of the launch daemon or agent directories, as shown in Table 1.

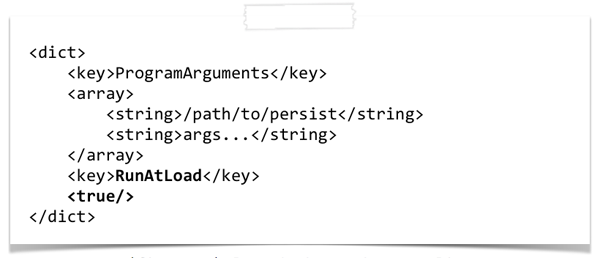

Property lists (or ‘plists’ in Apple parlance) are xml files that are used by OS X to store serialized objects. In the case of the launch daemons and agents, there is a plist for each daemon or agent that contains required configuration information. These files are processed by the OS as part of its initialization process and can contain key value pairs that may instruct the OS to automatically start the daemon or agent. Figure 8 shows a snippet from an example launch daemon/agent configuration plist file. Besides containing the path to the binary image of the daemon or agent (and any program arguments), it also contains a key value pair (RunAtLoad: true), to indicate that it should be started automatically by the OS.

Figure 8. A launch daemon/agent plist.

Containing a large amount of BSD code and logic within its core, OS X presents many ‘Unix-y’ flavoured persistence mechanisms that may be abused by OS X malware. Cron jobs are an example of exactly this. OS X supports cron jobs, which can be used to execute a command or script at certain intervals. For example, Figure 9 illustrates how a cron job can be created to echo some text each minute. To register the cron job, the command to execute is saved to file, then registered via the crontab command. To confirm the registration of the command, the crontab command is re-executed with the ‘-l’ parameter.

Figure 9. Cron job creation/enumeration.

By creating a login or logout hook, a script or command can automatically be executed whenever a user logs in or out. Apple states that these hooks are deprecated [14], but they still work on OS X Mavericks. The ‘defaults’ command can be used to create such a hook. Simply specify a write action, the com.apple.loginwindow.plist file, and then script or command to persist (see Figure 10).

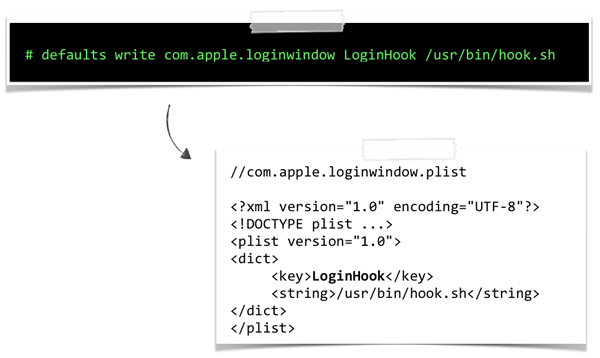

Figure 10. Creation of a login hook.

For applications, login items are the ‘Apple-approved’ way to persist. Anything that’s registered as a login item is visible in a GUI, via the System Preferences app. Login items are stored in the user’s Library/Preferences directory, in a plist file named com.apple.loginitems.plist. This file contains an entry for each login item, which contains the name of the item, whether it should be hidden, and base64-encoded data containing the path to the persistent application. Login items can be created via the GUI, programmatically by utilizing the ‘launch services’ API, or by directly manipulating the login item’s plist (com.apple.loginitems.plist).

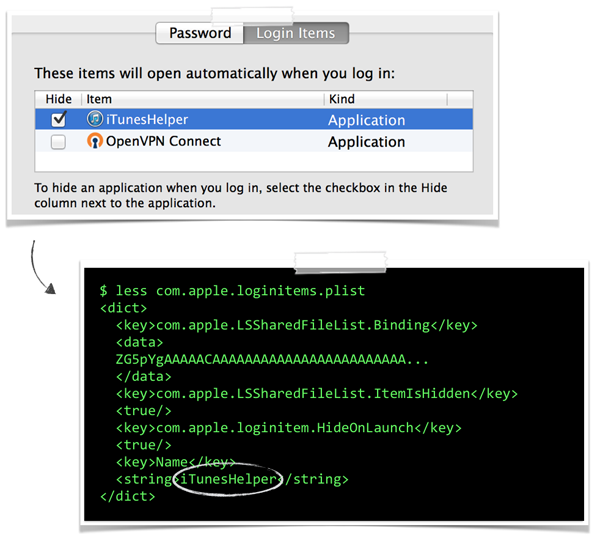

Figure 11. Login item: in the GUI and plist.

With the introduction of the application sandbox, applications downloaded from the Mac application store can no longer create or register themselves as traditional login items. To maintain compatibility, Apple designed a new way in which sandboxed applications could create login items. In order to register an application persistently in this manner, two applications are required: a main application and a helper. The application to persist (the helper), should be placed into a LoginItems sub directory of the main application, as shown in Figure 12.

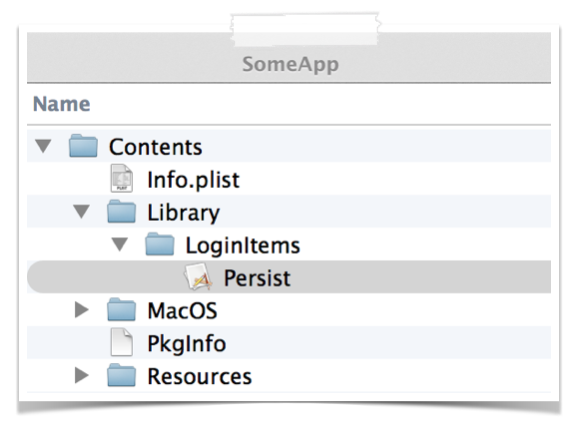

Figure 12. Required layout for a sandboxed login item.

Once executed, the main application should invoke the SMLoginItemSetEnabled() function. This function causes the helper application to persist, and ensures that it will automatically be executed whenever the user logs in.

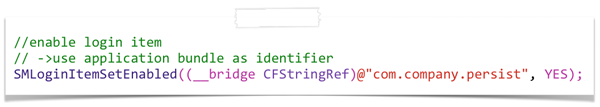

Figure 13. Code to persist a sandboxed login item.

OS X recently introduced a feature that automatically reopens applications whenever the user (re)logs in. The applications to reopen are stored in a plist within the user’s Library/Preferences/ByHost directory. Viewing the contents of this plist reveals keys such as the ID of the application, whether to hide it, and of course the path to the application. While there is not a (documented) programmatic API to manipulate the re-opened application plist directly, it may be possible to modify it directly in order to gain persistence.

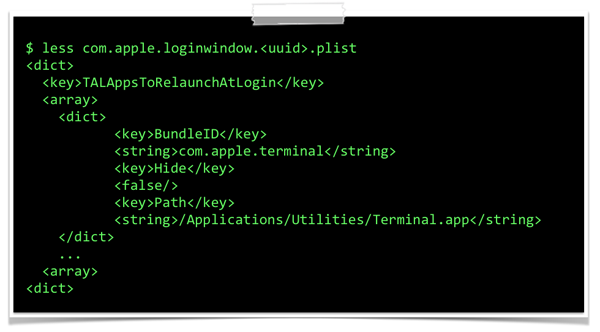

Figure 14. Plist entry of a re-launched application (terminal.app).

Another deprecated technique that still works on OS X Mavericks is ‘startup items’. Apple documentation explains that startup items allow a command or script to automatically be executed during OS X initialization. Creating a startup item involves placing two files into a startup item directory. The first file is a script that is to be executed automatically. The other file must be named ‘StartupParameters.plist’ and must contain a ‘Provides’ key that contains the name of the script file. Both of these files should be placed in a sub-directory in either the /System/Library/StartupItems or /Library/StartupItems directory. The name of the sub-directory must be the same as the name of the script file (and the value of the ‘Provides’ key in the StartupParameters.plist). Figure 15 illustrates the required file-system layout of a startup item.

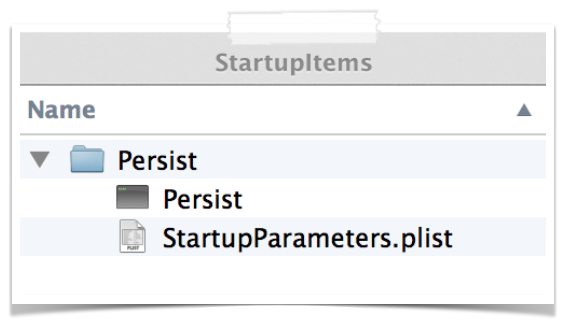

Figure 15. Directory structure of a startup item.

RC scripts are used in another BSD-flavoured persistence technique that works on OS X, allowing scripts or commands to automatically be executed. For example, the rc.common file can be edited to insert arbitrary commands that will automatically execute when OS X starts.

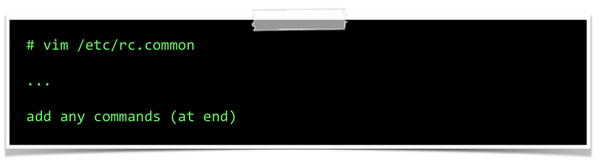

Figure 16. Injecting commands into rc.common.

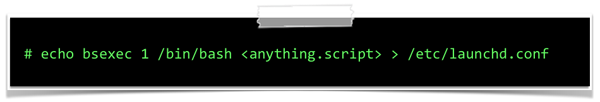

Recall that launchd is the first user-mode program to execute during OS X’s initialization. The launchd.conf file, as its name suggests, contains configuration parameters for launchd. As launchd.conf can contain arbitrary commands (via the bsexec command), malware can inject malicious instructions in order to achieve persistence.

Figure 17. Injecting commands into launched.conf.

Via the DYLD_INSERT_LIBRARIES environment variable, OS Xprovides a way to load arbitrary dynamic libraries (‘dylibs’) into a process. Specifically, when loading a process, the dynamic loader will examine the DYLD_INSERT_LIBRARIES variable and load any libraries it specifies. By abusing this technique, an attacker can ensure that a malicious library will persistently be loaded into a targeted process whenever that process is started.

There are two main ways to set the DYLD_INSERT_LIBRARIES environment variable so that arbitrary libraries will be loaded into a specific (targeted) process. When targeting a launch daemon or agent, an ‘EnvironmentVariables’ dictionary may be added to launch item’s plist. For targeting an application, the application’s Info.plist can be altered to contain a ‘LSEnvironment’ dictionary, seeFigure 18.

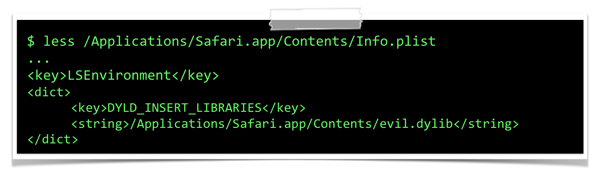

Figure 18. The application’s Info.plist is altered to contain a ‘LSEnvironment’ dictionary.

Computer viruses are one of the oldest forms of malware. Viruses infect files by injecting viral code in order to replicate. However, this viral code can also provide persistence: any time the infected binary is executed, the virus code will be executed as well. Since OS X binaries (and applications) can be unsigned, viral infection may be back in fashion! There are many ways to infect an OS X (mach-O) binary. The simplest method, described initially by the (in)famous VX’er roy g biv, involves injecting some viral code into a target binary, then hijacking the entry point to point to the virus code.

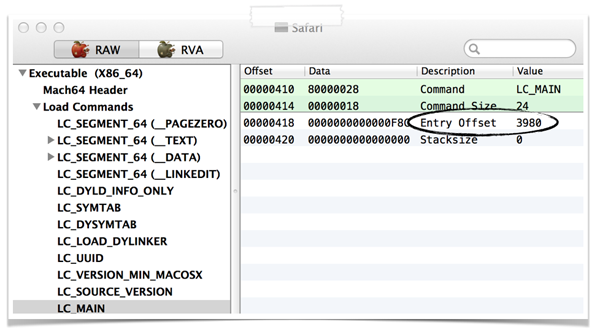

Figure 19 shows the LC_MAIN load command within an uninfected macho-O binary. This load command contains the ‘Entry Offset,’ or entry point, which may be hijacked during infection (to point to the viral code).

Figure 19. Mach-O binary structure/entry offset.

The final persistence mechanism covered in this paper is more of a generic class: application-specific persistence. Many applications (such as browsers) support plug-ins, which are generally dynamic libraries that are loaded automatically when the application is run. While plug-ins can legitimately extend the functionality of an application, malware can abuse this functionality to gain persistence. Applications that may be subverted include browsers such as Safari, Firefox and Chrome, or others such as iTunes [15].

It should be noted that sometimes it may be challenging to coerce an application to execute a malicious plug-in (it might load the plug-in, then decide it doesn’t like it). However, if the persistent plug-in exports a constructor (see Figure 19), it will automatically be executed (by the OS loader) as soon as it is loaded. Thus, even if the host application rejects the plug-in, it is too late as persistent code execution has already been achieved.

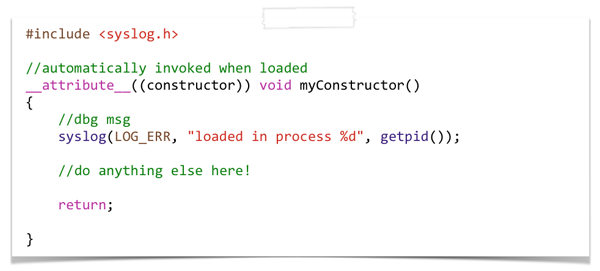

Figure 20. Dynamic library (plug-in) constructor.

While researching methods of malware persistence, several previously functional persistence techniques were found to have either been fully deprecated or removed in OS X Mavericks. These include modifying environment.plist, modifying com.apple.SystemLoginItems.plist and setting an ‘AutoLaunchedApplicationDictionary’ within the /Library/Preferences/loginwindow file.

While these methods of persistence are (or were?) common in older OS X malware samples, they are likely to fade into oblivion as they no longer work on the latest version of OS X.

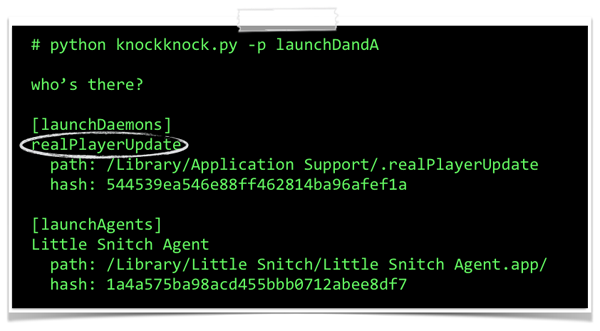

A few years ago, somebody (likely the Chinese government), started targeting Tibetan activists with malicious Word documents that attempted to exploit CVE-2009-0563. The payload of these attacks was named OSX/CallMe [16]. This malware was fairly basic, providing the attackers with the ability to execute arbitrary commands on an infected host, as well as exfiltrating the victim’s contacts (address book) [17]. In order to persist, CallMe installs itself as an auto launched launch daemon. Specifically, it creates a launch daemon plist, realPlayerUpdate.plist, within the /Library/LaunchDaemons directory that references the malware’s binary, .realPlayerUpdate (see Figure 21).

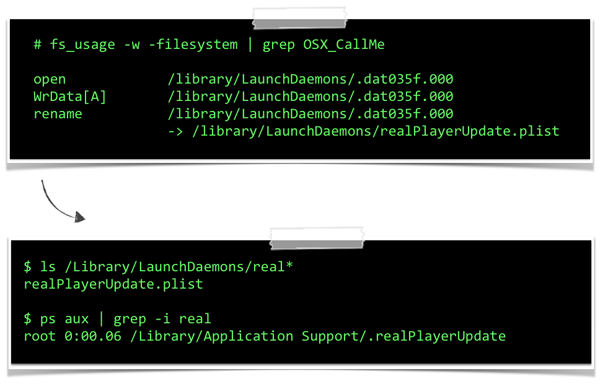

Figure 21. CallMe’s launch daemon persistence.

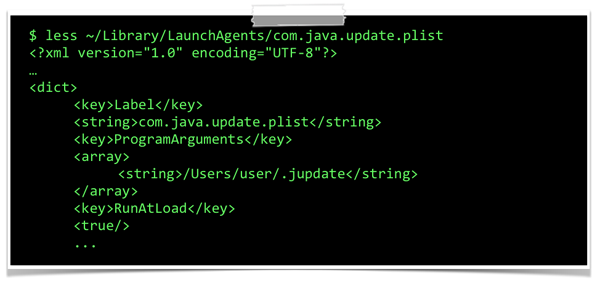

Flashback shattered the notion that OS X was immune to malware. By exploiting a known, but unpatched Java vulnerability, Flashback was able to automatically infect users as they visited a compromised or malicious website. At its height, it amassed over 600,000 infected hosts, making it the most ‘successful’ OS X malware to date [18]. Flashback’s goal was simply financial gain – by injecting ads into users’ web sessions. To ensure it was (re)executed each time an infected computer was rebooted, it installed itself as a user launch agent (com.java.update.plist, .jupdate). (See Figure 22.)

Figure 22. Flashback’s launch agent persistence.

According to online sources, OSX/Crisis is ‘an expensive rootkit used by governments’ [19]. Delivered via targeted exploits, it provides extensive surveillance capabilities by collecting audio, images, screenshots and keystrokes. Crisis also employs some fairly sophisticated stealth capabilities via a rootkit (kernel) component that can hide processes and files. Figure 23 illustrates some pseudo-disassembly, revealing the malware building a path to a file within the user’s launch agent directory. In other words, the disassembly shows the malware preparing to persist as a launch agent.

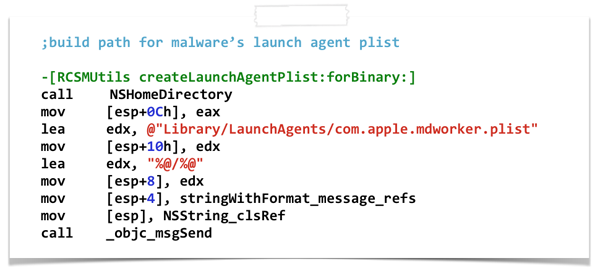

Figure 23. Crisis’ launch agent persistence.

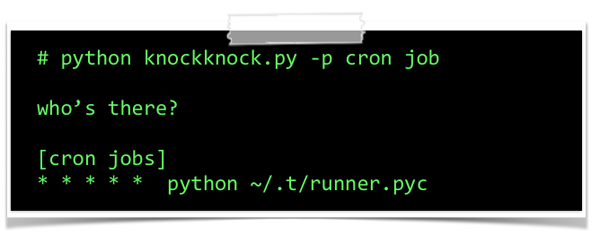

Janicab is a somewhat unique OS X malware sample, as it is written in Python (though compiled for distribution). The malware is also signed with an Apple Developer ID, probably in an attempt hide its maliciousness and thwart Gatekeeper. Since it is written in Python, the malware is easy to analyse and uncovering its persistence mechanism is trivial. As may be seen in the malware installer’s code, a cron job (set to execute every minute) is created to ensure that the malware is persisted (see Figure 24). It should be noted that once the malware is installed, the crontab -l command easily reveals the malicious cron job.

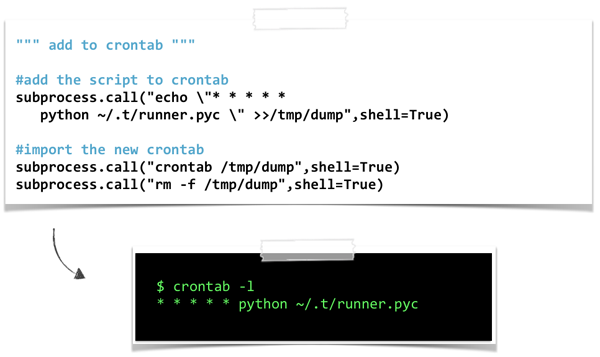

Figure 24. Janicab’s cron job persistence.

Kitmos is another OS X malware sample that targets activists. Discovered on an activist’s computer during the Oslo Freedom Forum Workshop, Kitmos takes screenshots and uploads them to a remote command and control server [20]. As the disassembly in Figure 25 shows, the malware invokes the LSSharedFileListInsertItemURL() function to add itself as a login item for the current user. Once registered as a login item, the malware will automatically be (re)executed by the OS whenever the user logs in.

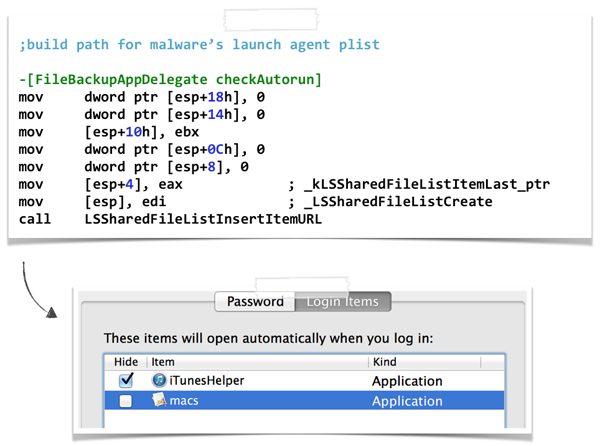

Figure 25. Kitmos’ login item persistence.

It is fairly common for malware to use social engineering tricks to coerce the user into infecting themselves. Yontoo masquerades as an ‘HD video codec’ to trick users who visit compromised or malicious websites into installing the malware. The malware creates malicious plug-ins for Safari, Firefox and Chrome. This allows the malware to automatically be executed whenever the user launches their browser. Once loaded into the context of the browser’s process content, the plug-ins transmit information about the loaded pages to a remote server as well as injecting ads into the user’s browsing session (see Figure 26).

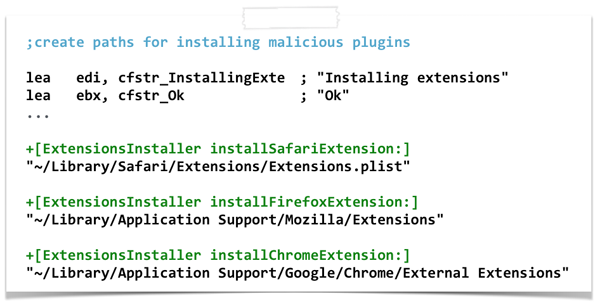

Figure 26. Yontoo’s browser extension(s) persistence.

Renepo is an older OS X malware sample that disables security mechanisms before downloading and executing other ‘hacker tools’ such as password crackers [21]. Since this malware is a script (which helpfully includes comments), it is easy to understand its installation and persistence logic. As shown in Figure 27, it persists as a startup item.

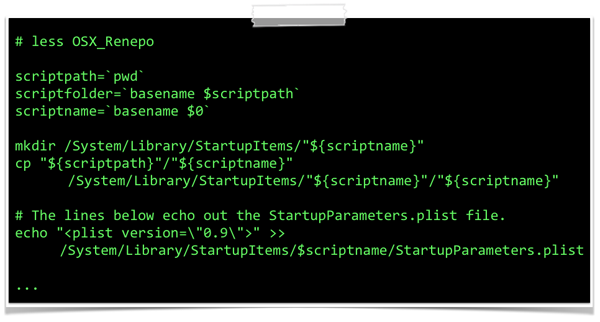

Figure 27. Renepo’s startup item persistence.

MacProtector is a fake (or ‘rogue’) anti-virus product. When a user visits a compromised or malicious website, MacProtector tries to convince the user that their computer is infected and that they should download an application to ‘fix’ it [22]. Unfortunately, if the user allows the downloaded installer to complete, they become infected with MacProtector. Reverse engineering this malware reveals that it installs itself as a login item. Though this will cause the malware to persist, it will also make it appear in the GUI (as well as in the login item’s plist). (See Figure 28.)

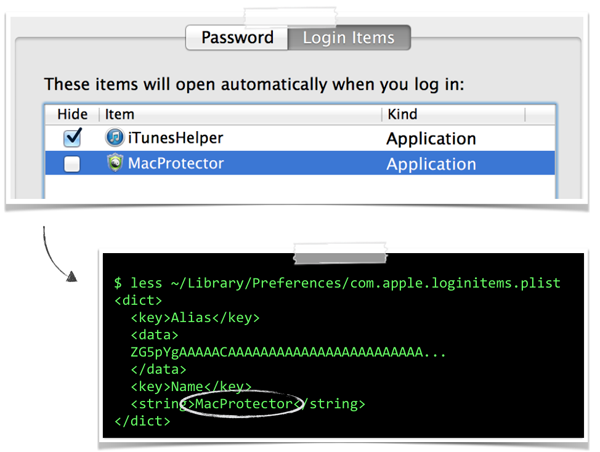

Figure 28. MacProtector’s login item persistence.

The previously discussed OS X malware samples are generally all stand-¬alone binaries or applications. OSX/Clapzok bucks this trend: it is a classic virus that infects binaries both to spread and to gain persistence [23]. It works by injecting viral code into a binary, then hijacking the entry point. However, since Clapzok infects signed apps (without un-signing them), it will likely cause major annoyances and, as a result, will be easily discovered (see Figure 29).

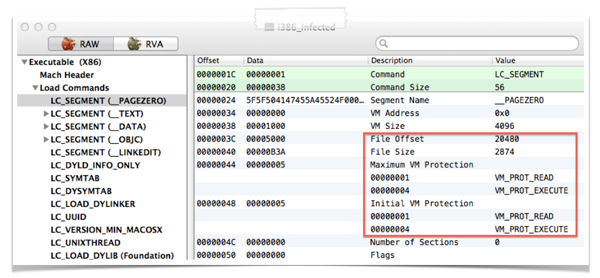

Figure 29. Clapzok’s mach-O infection persistence [23].
