Abstract
Following last month's introduction to memory analysis, Ken Dunham walks through the process using Haxdoor as an example.
Copyright © 2010 Virus Bulletin
In last month’s introduction to memory analysis (see VB, February 2010, p.15), three distinct phases of operation were identified: analysis of a live system (triage), dumping of volatile data to a file (capture), and analysis of combined data (analysis). This follow-up article walks through the whole process using Haxdoor as an example.
It is helpful when learning new tools and techniques to start with a known sample. The variant of Haxdoor used in this demonstration has an MD5 value of 9bb6fbb9dfaff0467d329284892d4e55. It uses kernel-level rootkit tactics to conceal processes, files and registry changes. Haxdoor is a well-known malware family due in part to its use in a phishing campaign targeting the Swedish Nordea bank [1]. With seven to eight million Swedish kronor having been siphoned away by the attackers, McAfee called this incident the ‘biggest ever’ online bank heist at the time of disclosure.
Haxdoor can be sent to a victim through numerous vectors, including email, web exploitation and more. Once executed, this particular variant creates the following files, many of which are hidden from Windows:
kgctini.dat
lps.dat
qo.dll
qo.sys
svjvpn.sys
svjvpn.dll
svkvpn.sys
Temp/W01083060Z (directory)
It also makes the following Windows registry changes:
HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon\Notify\svkvpn Startup = “ER03Sb5fex” HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon\Notify\svkvpn DllName = “svkvpn.dll” HKLM\SYSTEM\ControlSet001\Control\SafeBoot\Minimal\svjvpn.sys (Default) = “Driver” HKLM\SYSTEM\ControlSet001\Control\SafeBoot\Network\svjvpn.sys (Default) = “Driver” HKLM\SYSTEM\ControlSet001\Enum\Root\LEGACY_SVJVPN\0000\Control ActiveService = “svjvpn” HKLM\SYSTEM\ControlSet001\Enum\Root\LEGACY_SVJVPN\0000 Service = “svjvpn” HKLM\SYSTEM\CurrentControlSet\Services\svjvpn\
In addition, it injects explorer.exe to run hidden in memory and it may attempt communications with skyinet.info.
After infecting a test Windows operating system with Haxdoor, triage begins.
The first step is to look at the Windows Task Manager, sort by image name and look for any processes that are missing from the list, and any processes on the list that should not be there. Having done this, we can see that explorer.exe is missing from the list – it should be visible. This is an indication that the process has been injected and hidden by a rootkit (Figure 1).
The next step is to look for extra and/or missing processes in Process Explorer – some malicious programs are visible using this tool but not with Windows Task Manager, indicating a possible rootkit process. However, in this case Process Explorer 11.x does not reveal any new information.
The next step is to run FPort and dump the results to a file. FPort reveals the following output:
FPort v2.0 - TCP/IP Process to Port Mapper Copyright 2000 by Foundstone, Inc. http://www.foundstone.com Pid Process Port Proto Path 932 svchost -> 135 TCP C:\WINDOWS\system32\svchost.exe 4 System -> 139 TCP 4 System -> 445 TCP 684 alg -> 1028 TCP C:\WINDOWS\System32\alg.exe 1588 Explorer -> 16016 TCP C:\WINDOWS\Explorer.EXE 1588 Explorer -> 16661 TCP C:\WINDOWS\Explorer.EXE 1588 Explorer -> 43818 TCP C:\WINDOWS\Explorer.EXE 1588 Explorer -> 47762 TCP C:\WINDOWS\Explorer.EXE 1588 Explorer -> 123 UDP C:\WINDOWS\Explorer.EXE 684 alg -> 123 UDP C:\WINDOWS\System32\alg.exe 4 System -> 137 UDP 0 System -> 138 UDP 932 svchost -> 445 UDP C:\WINDOWS\system32\svchost.exe 4 System -> 500 UDP 1588 Explorer -> 1025 UDP C:\WINDOWS\Explorer.EXE 1588 Explorer -> 1900 UDP C:\WINDOWS\Explorer.EXE 0 System -> 1900 UDP 1588 Explorer -> 4500 UDP C:\WINDOWS\Explorer.EXE
A quick analysis of the list above reveals explorer.exe (PID 1588) communicating on TCP ports 16016, 16661, 43818 and 47762 in addition to other traffic. Since explorer.exe was hidden before, probably injected, and is now found to be associated with ephemeral port activity, this is an area to focus on.

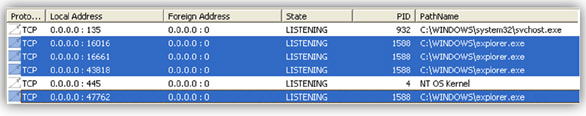

TCPView is the next logical step, since it is a great tool for providing a quick visual overview of any running processes that are responsible for TCP communications. In this case TCPView produces the output shown in Figure 2, revealing ‘non-existent’ process names communicating on these same ports.
At this point we have confirmed an injected process and identified two TCP ports of interest. We have yet to identify file and registry changes. IceSword is the next tool we will use to analyse the system and focus on these initial leads.

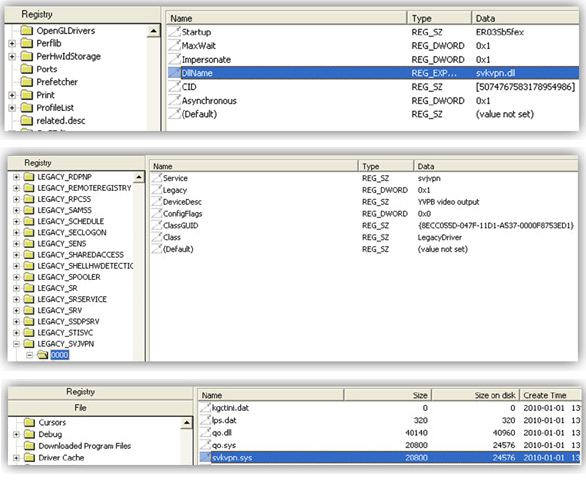

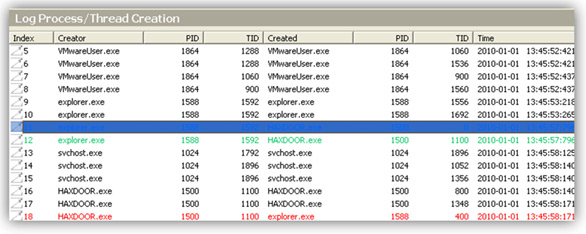

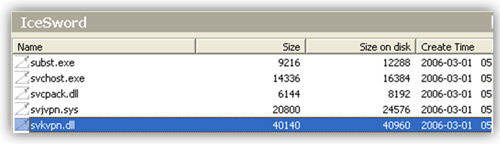

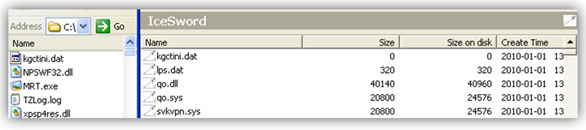

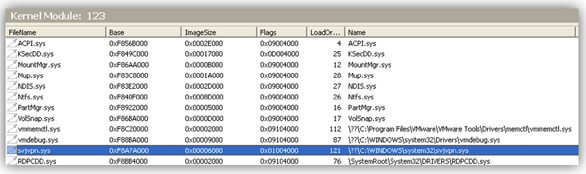

IceSword highlights any data it believes to be associated with rootkit activity. Screenshots in Figures 3–12 below show snippets of clues and proven rootkit functionality via this tool.
With triage completed, the next step is to capture physical memory to a file for further analysis.
The open source MDD tool was used in the capture of RAM to a file on the infected system. IceSword and a tool from GMER called catchme.exe were used to capture rootkit files. Once captured, the memory image can be analysed with the Volatility Framework and files are captured via standard behavioural analysis, multiscanners, sandboxes, MD5 and file data open source queries, and more.
The MD5 of the main Haxdoor executable has already been analysed, with public data available at the following locations:
This type of data aids the researcher in identifying what other analysis and/or incident data exists for the sample and may prompt the researcher to revisit the infected computer for additional files or behavioural tests and/or identify where to focus the Volatility Framework analysis.
Before beginning Volatility Framework analysis we need a solid reference from what is known or suspected about the code being investigated. This aids in the specific commands and exports performed within the Volatility Framework for the memory dump analysed.
The following information is known about this specific dump:
It creates several files: kgctini.dat, lps.dat, qo.dll, qo.sys, svjvpn.sys, svjvpn.dll, svkvpn.sys and Temp/W01083060Z (directory).
It makes changes to the Windows registry referencing svkvpn and svjvpn.sys.
It injects explorer.exe PID 1588 and may attempt communications with skyinet.info.
Of course, the initial investigation may not have turned up all hidden components on a system. As such, the list above is only an initial triage in confirming and capturing data related to the attack. Additional measures may be required, such as dumping all processes to files and inspecting them for possible hostile content.
In our example, the output from the DLLlist and Files commands confirms the injected rootkit DLL in explorer.exe (PID 1588):
DLLlist
explorer.exe pid: 1588 Command line : C:\WINDOWS\Explorer.EXE Service Pack 3 Base Size Path 0x1000000 0xff000 C:\WINDOWS\Explorer.EXE ... 0x2c90000 0x52000 C:\WINDOWS\system32\svkvpn.dll
Files
Pid: 1588 ... File \WINDOWS\WinSxS\x86_Microsoft.Windows.Common-Controls_6595b64144ccf1df_6.0.2600.5512_x-ww_35d4ce83 File \WINDOWS\system32\svkvpn.dll
A socket scan reveals specific offsets of interest related to the injected port activity:
PID Port Proto Create Time Offset ---- ---- ----- ------------------------ ---------- 1588 16016 6 Fri Jan 01 17:18:44 2010 0x020d80e8 1588 16661 6 Fri Jan 01 17:18:44 2010 0x024cc600 1588 16016 6 Fri Jan 01 17:18:44 2010 0x11e5e0e8 1588 16016 6 Fri Jan 01 17:18:44 2010 0x16d560e8 1588 16661 6 Fri Jan 01 17:18:44 2010 0x17752600
Finally, a module scan reveals the SYS file details of interest:
File: \??\C:\WINDOWS\system32\svjvpn.sys Base: 0x00f8a42000 Size: 0x006000 Name: svjvpn.sys
Another rootkit has been run in Windows. The reader is invited to determine what family of code it belongs to and what is malicious based on the brief description below; the author can be contacted for the answer.
When run within VMware, the code runs in memory and then disappears from Process Explorer 11.x. Yet when TCPView is run, it terminates immediately instead of running like it should, and Windows Task Manager won’t run in memory. FPort still works and reveals svchost activity over TCP port 58318:

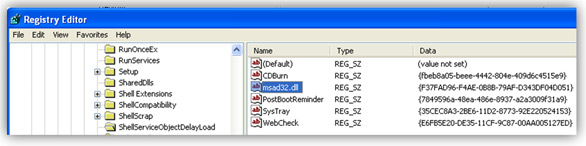

IceSword reveals the same TCP port activity for svchost.exe (PID 1384). It also reveals three hidden files in the Windows System32 directory: msux, msad32.dll and msur.exe. A search for the DLL in Windows Regedit reveals changes to the registry in ShellServiceObjectDelayLoad (Figure 14).
A DLLlist analysis with the Volatility Framework confirms that the DLL in question is injected into the svchost PID 1384:
svchost.exe pid: 1384 Command line : svchost.exe Service Pack 3 Base Size Path 0x1000000 0x6000 C:\WINDOWS\system32\svchost.exe 0x10000000 0x46000 C:\WINDOWS\system32\msad32.dll 0x7c900000 0xb2000 C:\WINDOWS\system32\ntdll.dll
A files analysis with the Volatility Framework provides the following details for PID 1384:
Pid: 1384 File \Documents and Settings\Administrator File \WINDOWS\WinSxS\x86_Microsoft.Windows.Common-Controls_6595b64144ccf1df_6.0.2600.5512_x-ww_35d4ce83 File \WINDOWS\WinSxS\x86_Microsoft.Windows.Common-Controls_6595b64144ccf1df_6.0.2600.5512_x-ww_35d4ce83 File \WINDOWS\WinSxS\x86_Microsoft.Windows.Common-Controls_6595b64144ccf1df_6.0.2600.5512_x-ww_35d4ce83 File \Endpoint File \Documents and Settings\Administrator\Local Settings\Temporary Internet Files\Content.IE5\ index.dat File \Documents and Settings\Administrator\Cookies\index.dat File \Documents and Settings\Administrator\Local Settings\History\History.IE5\index.dat File \WINDOWS\WinSxS\x86_Microsoft.Windows.Common-Controls_6595b64144ccf1df_6.0.2600.5512_x-ww_35d4ce83 File \WINDOWS File \ File \ROUTER File \ROUTER File \Endpoint File \WINDOWS\system32\raschap.dll File \WINDOWS\system32\logonui.exe
When run a second time on a clean Windows XP Professional system, msrf32.dll is created in the Windows System32 directory with similar size, behaviour and files.
For the answer to this challenge, contact the author at kend[at]kendunham.org.
