Your filters are bypassed: Rustock.C in the kernel

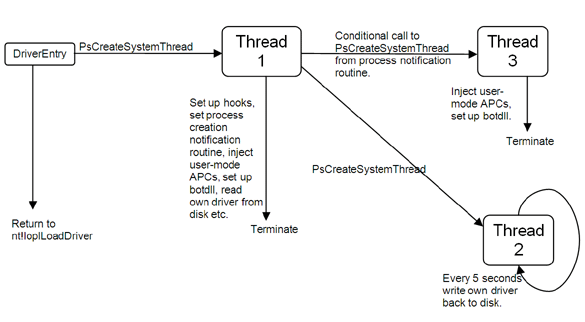

Thread1 starts by creating a named event handle via ZwCreateEvent with the name \BaseNamedObjects\{C8453B23-1087-27d9-1394-CDBF03EC72D8}. The use of the \BaseNamedObjects directory indicates that this event object is intended to be shared with user mode. It starts by searching the NULL terminated ASCII string ‘FATAL_UNHANDLED_HARD_ERROR’ in the resource section of ntoskrnl. If the string is found, a page-locking test is performed on the page that contains the string using the pseudo code shown below:

__try
{
    PMDL mdl;
    mdl = IoAllocateMDL(
       vaFatalHandledHardErrorStr,
       0x1b, // NULL terminated length of str.
       0,
       0,
       0);
    MmProbeAndLockPages(
       mdl,
       KernelMode,
       IoAccessRead);
}
__except(EXCEPTION_EXECUTE_HANDLER)
{
    IoFreeMdl(Mdl);
}

The call to MmProbeAndLockPages will throw an access violation exception if appropriate access is not granted to the requested pages. In Rustock.C, there is no reference to MDL allocated from IoAllocateMDL, which raises questions as to the purpose of this code here. However, there is a connection to the Rustock.A kiFastCallEntry hook (see below), indicating that Rustock.C is very likely an enhanced version of the Rustock.A code base, and this code is simply left over from its previous version [3], [4].

;  =
; msr[176] = 806afd59
; 806afd59                 e9 ec 2e e6 77 4e 44 4c   ....wNDL
; 806afd61                 45 44 5f 48 41 52 44 5f   ED_HARD_
; 806afd69                 45 52 52 4f 52 0d 0a 00   ERROR...

806afd59 e9ec2ee677 jmp rustockA+0x4c4a

The thread then calls ZwCreateFile to open a handle to the ntdll file using the \SystemRoot\System32\ntdll.dll path. Following this, a call is made to ZwQueryInformationFile to obtain the on-disk size of ntdll using FILE_INFORMATION_CLASS FileStandardInformation. Using the ntdll file size a new buffer is allocated with ExAllocatePoolWithTag and the ntdll file is read off disk using ZwReadFile.

The disk buffer containing ntdll data is then virtually mapped into a new buffer. The new buffer is also allocated via ExAllocatePoolTag, and once it has been virtually mapped, the previous buffer containing the on-disk data is freed. The virtually mapped ntdll is used to obtain the SSDT service number index of hooked Zw functions by searching the function entry in the ntdll export table. When the virtually mapped ntdll is ready, it stores it own load address, size and full driver path in designated memory locations for subsequent use. The self-load information is used to map its own driver into user space as described later. It then sets up its process creation notification routine via PsSetCreateProcessNotifyRoutine and creates a second thread, Thread2, as shown in Figure 1. All sub-keys and values under \registry\machine\system\CurrentControlSet\Enum\Root\LEGACY_<rustockC_driver_name> are deleted recursively.

Rustock.C hooks the registry in a way that has not been seen in previous Rustock variants [5]. It hooks the registry key parse procedure in the kernel that is registered by the configuration manager with the object manager (see below). The parse procedure is employed to parse a registry path in registry-related APIs.

 _OBJECT_TYPE_INITIALIZER
 +0x000 Length          : 0x4c
 .
 .
 +0x030 OpenProcedure   : (null)
 +0x034 CloseProcedure  : 0x8056bf9e nt!CmpCloseKeyObject+0
 +0x038 DeleteProcedure : 0x8056c072 nt!CmpDeleteKeyObject+0
 +0x03c ParseProcedure  : 0xf9b4fdd3 <-- Rustock.C address (normally
 nt!CmpParseKey).
 +0x040 SecurityProcedure     : 0x8056bfd6 nt!CmpSecurityMethod+0
 +0x044 QueryNameProcedure    : 0x805a935e nt!CmpQueryKeyName+0
 +0x048 OkayToCloseProcedure  : (null)

Some more functions, ZwOpenKey and ZwCreateKey, are also hooked. After setting up registry hooks, the malware gets a handle to the directory containing its driver file using ZwCreateFile and that handle is used in ObReferenceObjectByHandle to get a FILE_OBJECT pointer. It then calls IoGetRelatedDeviceObject on the DeviceObject field of the file object to obtain the highest-level device object in the file system filter driver stack. Typically, on machines that support the filter manager, the highest-level device object happens to be the device object of the filter manager driver (FltMgr.sys). Using the highest-level device object the malware walks down the device stack until it finds the lowest-level device object created by the NTFS driver. The device object of the NTFS driver is used to hook its IRP_MJ_CREATE dispatch routine. In one Rustock.C variant, the mechanics of this create hook allowed a copy of its driver from the Windows command prompt, but the copy was not the same as the original driver file.

ZwTerminateProcess is then hooked and a function dispatch table is set up, which is used to serve commands from botdll in an unusual way:

NTAPI NtTerminateProcess(
      IN HANDLE hProcess,
      IN NTSTATUS ExitCode
);

00012339 cmp     dword ptr [ebp+0Ch], 0FCC7975Bh
            ; ExitCode parameter contains special
            ; encoded value for botdll and
            ; driver communication.
00012340 jnz     short OrigNtTerminateProcess
      .
      .
OrigNtTerminateProcess:
            ; Normal process termination requests
            ; come here.
000123AF push    dword ptr [ebp+0Ch]
000123B2 push    dword ptr [ebp+8]
000123B5 mov     eax, OrigNtTerminateProcess
000123BA call    dword ptr [eax]

The ExitCode parameter of ZwTerminateProcess is set to a specific value that indicates a message from botdll to the driver. The message parameters are encoded in the first hProcess parameter. Normal process termination requests are routed to the original NtTerminateProcess routine address stored in memory as shown above.

Services.exe is used as a goat process for hosting botdll. The process id of the services.exe process is obtained using the SystemProcessAndThreadsInformation class in the ZwQuerySystemInformation call. This process id is used to get the EPROCESS object associated with services.exe. The EPROCESS object is used in the KeAttachProcess call to attach to the virtual address space of services.exe. Then Rustock.C maps its own driver’s PE image into the services.exe address space using the IoAllocateMdl, MmBuildMdlForNonPagedPool, MmMapLockedPages sequence of calls. By mapping its own driver image in user space, the malware makes its code and data available to user-mode processes, as described later in this section.

Before calling KeDetachProcess, Rustock.C calls NtSetInformationProcess on services.exe with the PROCESS_INFORMATION_CLASS parameter as ProcessExecuteFlags(0x22) with mask value MEM_EXECUTE_OPTION_ENABLE(0x2). The purpose of this call is to disable the no-execute (NX) bit for DEP data pages [6]. The malware then gets information of all services.exe threads using the SystemProcessAndThreadsInformation class in ZwQuerySystemInformation called earlier and sends an asynchronous procedure call (APC1) to each of the threads. The APC mechanism is designed to execute a function in the context of a target thread. The API calls used for APC are KeInitializeApc and KeInsertQueueApc:

NTKERNELAPI
VOID
KeInitializeApc (
    IN PRKAPC Apc,
    IN PKTHREAD Thread,
    IN KAPC_ENVIRONMENT Environment,
    IN PKKERNEL_ROUTINE KernelRoutine,
    IN PKRUNDOWN_ROUTINE RundownRoutine OPTIONAL,
    IN PKNORMAL_ROUTINE NormalRoutine OPTIONAL,
    IN KPROCESSOR_MODE ApcMode,
    IN PVOID NormalContext
    )

The NormalRoutine and NormalContext parameters are the user-mode virtual addresses of the APC1 start routine and its context respectively. Note the values for these user-mode virtual addresses are set earlier by mapping the malware’s own kernel PE image into user space. The KernelRoutine parameter in KeInitializeApc is the address of a function in kernel space that frees up the APC object (first parameter) allocated from a non-paged pool. The primary purpose of the APC1 call is to set up the import address table of function names referenced in the NormalContext field:

LoadLibraryA
GetProcAddress
SetEvent
Init
CreateThread
SleepEx

The virtual addresses of these functions are resolved using the load address of kernel32.dll from dll load information stored in the process environment block (PEB). The address of the PEB is obtained using the FS:[30] register expression. The Init function is resolved from exports of botdll injected into services.exe by a second APC (APC2), as described later. APC1 also creates a new thread in user mode, whose startup routine is shown below:

ThreadStartRoutine:
push 1
push 0FFFFFFFFh
call dword ptr [esp+0Ch]
            ; SleepEx(INFINITE, TRUE)
jmp  ThreadStartRoutine

This thread seems to be doing nothing but sleep forever! The purpose of this sleep is to put the thread in an alertable state using the bAlertable parameter as TRUE so that future APCs can be executed promptly:

DWORD SleepEx(
   DWORD dwMilliseconds,
   BOOL bAlertable
);

If the thread is not in an alertable state, APCs are queued [7].

The next step in setting up the user-mode botdll is for the malware to read its own driver file from disk. It first creates an empty file object using ObCreateObject and sets the file name to refer to its own driver file. It then gets the device object of the lowest file system driver, i.e. NTFS driver, and, using the new file object and device object, generates IRP_MJ_CREATE to read its own driver file.

The file is read in two steps. First, the file size is obtained using IRP_MJ_QUERY_INFORMATION with FILE_INFORMATION_CLASS as FileStandardInformation. In the second step, IRP_MJ_READ is sent in a buffer allocated from ExAllocatePoolWithTag. Rustock.C then sends IRP_MJ_CLEANUP and IRP_MJ_CLOSE directly to the NTFS driver to undo the actions associated with IRP_MJ_ CREATE. The memory location containing the malware’s own file data is saved for later use (for example, in a separate worker thread to write its copy to disk at regular intervals for resuscitation).

Typically, IRP_MJ_CREATE, IRP_MJ_CLEANUP and IRP_MJ_CLOSE are generated implicitly by I/O Manager inside the Windows kernel, and by rolling out these IRPs on its own, Rustock.C showcases the sophistication of its authors. Generating its own IRP_MJ_CREATE is a non-trivial task involving several intricate steps, especially relating to setting parameters for the caller’s security context. Since it rolls out its own IRP_MJ_CREATE, the Rustock.C driver is able to send direct read and write requests (IRP_MJ_READ and IRP_MJ_WRITE) to the NTFS driver. This allows the malware to bypass any filter drivers that are typically used by security vendors to provide kernel-based on-access security against malicious files.

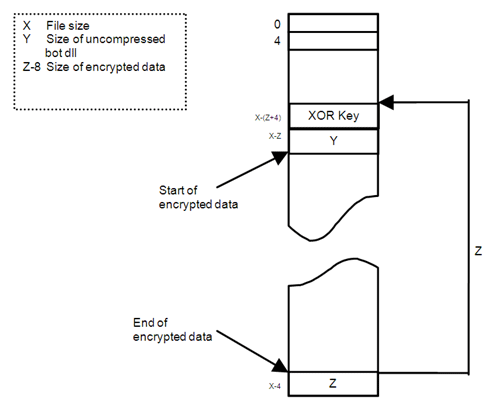

From the data buffer containing the on-disk driver the next step is to get botdll. The botdll code is stored encrypted and compressed in the original driver file, as shown in Figure 2.

Figure 2.

The encryption consists of a simple XOR and the compression algorithm used is aPLib [1]. After the botdll code is uncompressed into a new memory buffer, it is virtually mapped into yet another new buffer. Relocations of the botdll code are fixed in kernel mode as its user-mode base address has already been obtained from the MmMapLockedPages call. PE and MZ signatures in the final virtually mapped buffer are also zeroed out and the start address of that buffer is set in the NormalContext field of the second APC (APC2). Like APC1, APC2 is also queued to threads of the services.exe process. The NormalRoutine parameter of APC2 consists of code that performs fixups of imports of botdll. The imports are fixed up using the LoadLibraryA and GetProcAddress APIs that have already been set up via APC1.

An anti-emulation/anti-debugging trick is used for import table fixups in botdll. First, it looks up the virtual address of byte sequence c20400 in the kernel32!SetEvent function, which is actually the machine code equivalent of mnemonic ‘ret 4’:

00011093 call    loc_00011098
00011098 pop     edx
00011099 add   edx, 10h      ; Save 000110A8 in EDX.
0001109C push  0 ; Extra push1.
                ; PUSH to compensate for
                ; additional sizeof(dword)=4
                ; byte increment in esp,
                ; because of ‘ret 4’.
0001109E push  edx     ; Extra push2.
                ; Pushing location 000110A8.
                ; Location 000110A8 is where
                ; ret 4 instruction
                ; will transfer control.
0001109F push  [ebp+Va_ImpDllName]
                ; e.g. “kernel32.dll”.
000110A2 push  [ebp+Va_RET_4]      ; Extra push3.
                ; Pushing address of location
                ; in kernel32!SetEvent whose
                ; opcode is ret 4.
000110A5 jmp   [ebp+Va_LoadLibraryA]
                ; This is where the return call
                ; trick is executed.
000110A8 mov   [ebp-38h], eax
                ; Save return from LoadLibraryA

The calls to GetProcAddress are made in a similar way, by using the address of the ‘ret 4’ instruction taken from the kernel32!SetEvent function. After relocations, the entry point of botdll is called, followed by a call to its export function, named Init, that performs the bot activity.
